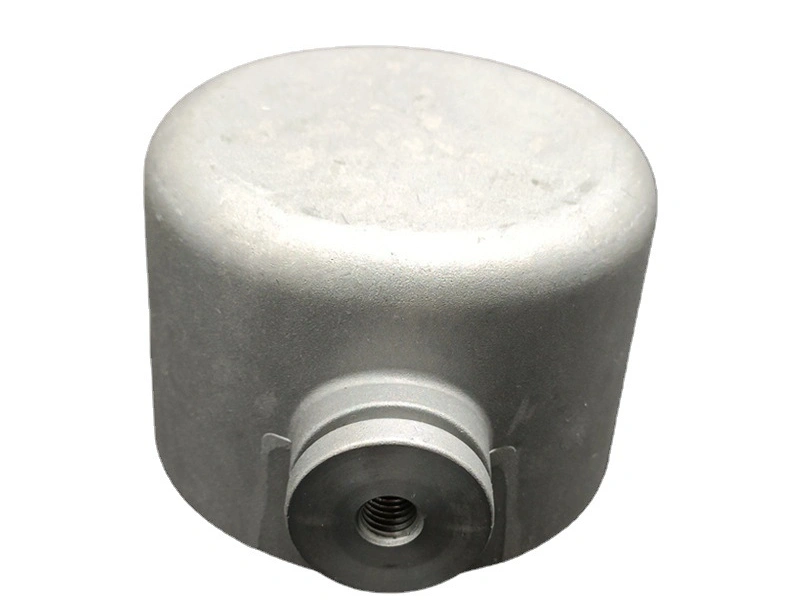

Do Aluminum Die Cast Prototypes Need CNC Machining and Surface Finishing?
Aluminum die cast prototypes need CNC machining and surface finishing only when those operations affect the decision being validated. An early envelope model may need neither. A production-oriented prototype should include the intended machining and finish when holes, datums, sealing, coating thickness, masking, corrosion tests or appearance determine acceptance. Otherwise, the sample does not represent the delivered part.
Select the prototype state
Define whether the required sample is as cast, machined, finished or assembled. Each state answers a different question. An as-cast trial is suitable for fill, ejection and blank measurements. It cannot approve a final bearing fit. A machined sample can approve final geometry before coating, but coating or insert installation may still change that result.
Decision | Prototype operations needed | Acceptance point |
|---|---|---|
Die fill and cast envelope | Representative casting, trim and cleaning | Before machining, using cast-state criteria |
Hole pattern or bearing fit | Representative casting plus intended fixture and CNC sequence | After machining from drawing datums |
Gasketed pressure boundary | Casting, sealing-face machining, specified finish and assembly where relevant | At the defined final-state leak or pressure test |
Coated assembly clearance | CNC, preparation, masking and production-intent coating | After finish with mating components or gauges |
Cosmetic approval | Actual cast surface, cleanup, preparation and finish | Under the agreed visual standard and viewing condition |
Machine representative cast blanks
A billet-machined prototype can validate final CAD and cutter access. It cannot validate the first fixture's relationship to an as-cast surface, local cleanup stock or pores exposed by cutting. For production machining evidence, use cast blanks representing the intended alloy and process.
Confirm which cast features locate the first setup and which machined features become later datums. Check stock at each face, clamping distortion, tool reach, chip escape, thread depth, burr removal and inspection access. The machining and finish planning guide connects these inputs.
Test the finish on the right substrate
Finishing behavior depends on alloy chemistry, cast-surface condition, release residue, blasting or pretreatment, machined areas and handling. A painted or anodized wrought plaque can select a color direction, but it cannot approve the same appearance on a die casting. Use actual cast geometry for final cosmetic and process approval.
Specify visible zones, permitted cast marks, edge treatment, texture, gloss or color method where needed, contact points and viewing conditions. For anodizing, do not assume wrought-like decorative uniformity on high-silicon die-cast alloys. For powder coating or paint, verify preparation and cure as part of the selected system.
Protect functional surfaces
Coating can reduce hole clearance, affect threads and alter gasket or grounding contacts. Define masking for bores, threaded features, sealing lands, electrical contacts and machined datums. Consider whether masking edges create a ridge that affects assembly or corrosion protection.
Inspect characteristics after the last operation capable of changing them. Recheck a coated bore or mating plane if thickness affects fit. Inspect a sealing face after blasting and handling if it can be damaged. The aluminum die-casting finish comparison supports process screening, while project criteria control approval.
Do not add operations without a purpose
Machining every prototype surface can hide casting variation and inflate cost. Applying a premium finish to a structural fit check can waste time. Conversely, omitting finish from a cosmetic or corrosion qualification gives incomplete evidence. The operation scope should follow the decision matrix, not a blanket rule.
State any manual polishing, filling, hand fitting or touch-up used on a sample. Those steps may help demonstrate intent but must not be mistaken for a repeatable production route unless they are documented and costed as such.
Include cleanliness and assembly where they change acceptance
Machining can leave chips, cutting fluid or abrasive residue in blind passages. Finishing can add media or masking debris. If cleanliness affects a valve, electronics enclosure, thermal interface or sealed assembly, define cleaning and verification in the prototype route. A visually clean exterior does not establish internal cleanliness.
Install inserts, seals or fasteners on representative samples when insertion load, torque, grounding or final alignment matters. Check the part again after assembly if pressing or fastening can distort thin walls or machined relationships. These operations belong before acceptance when the customer receives an assembled component.
Create an appearance standard
Approve a physical limit sample or controlled visual record that identifies viewing side, lighting, distance and allowable casting or finish marks. Separate cosmetic zones from hidden and machined surfaces. Borderline samples are often more useful than a perfect master because they show inspectors where acceptance changes.
Record substrate, preparation, coating batch and any touch-up on the standard. If production moves to another finisher or changes pretreatment, review whether the master remains valid. Appearance approval without route data is difficult to reproduce.
Buyer RFQ
Provide cast and final models, drawing datums, machined-surface map, stock assumptions, threads, surface texture, finish specification, masking, cosmetic zones, mating parts and final tests. Ask the supplier to quote prototype states separately and identify which process differences remain before production.
The right answer is therefore conditional: include CNC machining and surface finishing wherever the final decision depends on them. Release the prototype only in the state that proves the intended requirement, with evidence that later operations have not invalidated it.
