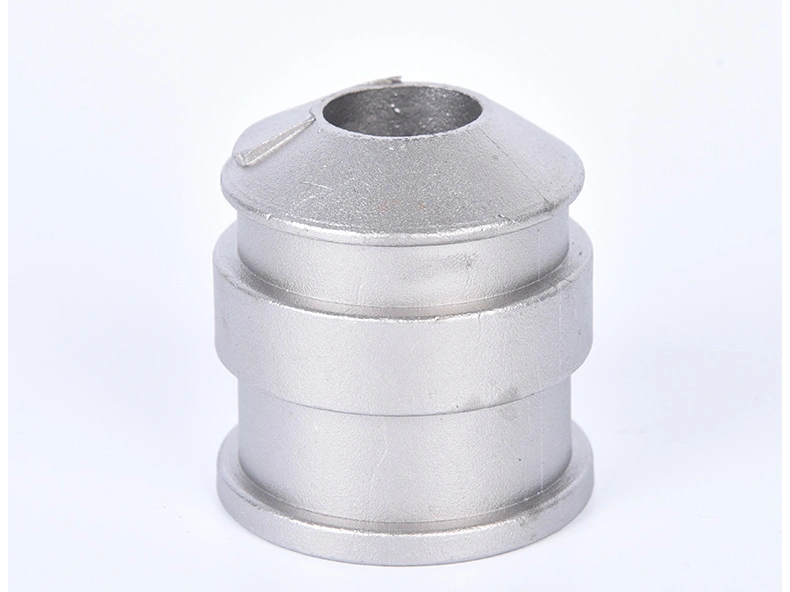

Do High Pressure Aluminum Die Cast Parts Need CNC Machining?
High pressure aluminum die-cast parts need CNC machining only where the finished function demands more control than the approved as-cast process can provide. Bores, threads, sealing faces, bearing seats, locating holes and tight datum relationships are common machined features. Clearance surfaces, hidden ribs and non-mating walls may remain as-cast. Machining is requirement-specific, not an automatic step for every HPDC part.
The economical route often combines a near-net aluminum die casting with selective CNC work. That combination succeeds only when stock, datums, fixtures and internal-quality risks are planned before tool release.
Decide machining feature by feature
A finished bore may need diameter, roundness and alignment that justify CNC boring. A gasket face may require a defined flatness and roughness. Threads may be cut or formed after casting to control engagement and avoid fragile cast details. By contrast, a generous cable opening or an internal stiffening rib may perform correctly in the approved as-cast condition.
Mark each machined area on the drawing and connect it to function. Avoid applying one tight tolerance to the entire casting when only a small interface governs assembly. This distinction controls fixture count, cutting time, gauges and rejection exposure. The guide to CNC machining after die casting provides broader route-planning context.
Feature | Machine when | Evidence at acceptance |
|---|---|---|
Locating bore or pin hole | Fit, position or alignment exceeds validated as-cast control | Size and position from the finished datum system |
Sealing face or groove | Gasket contact, flatness, roughness or geometry requires it | Surface measurement and leak test in the stated final condition |
Threaded port | Thread engagement, sealing or positional control is functional | Thread gauge plus applicable position and leak checks |
Bearing seat | Diameter, roundness and coaxiality control motion | Measured after all related setups and thermal operations |
Non-mating wall or rib | Only if another named function requires removal | As-cast profile or visual standard where relevant |
Build a datum-transfer plan
The first CNC setup must locate a casting whose shape varies within its approved window. Define cast pads or targets that establish the initial fixture, then show how machined datums control later setups. A thin housing needs support that resists cutting forces without distorting the wall. Clamping on an unstable parting line or ejector region can create false accuracy while the part is held and spring-back after release.
Inspection should use the same functional logic. A machined hole can be within size but mislocated to the mating face because machining and inspection used different references. Put the datum sequence, setup intent and finished measurement stage in the manufacturing plan. If coating changes a fit or masks a datum target, define whether acceptance occurs before or after finish.
Set machining stock with the tool design
Stock must be sufficient for the machined surface to clean up across casting variation, tool mismatch and expected distortion. Too little stock can leave uncut skin or interrupted sealing tracks. Excess stock adds cutting time, heat, tool load and the depth at which subsurface pores may be opened. There is no universal allowance; it depends on feature size, datum scheme, casting capability, cutter approach and required finish.
Review stock on the tool model before steel release. Machining suppliers should see gate, parting-line and ejector locations because they affect workholding and tool access. A late decision to move a datum or deepen a cut can require a tool correction and renewed qualification.
Manage porosity exposed by cutting
HPDC forms a relatively sound surface skin while pores may exist below it. Cutting a port, O-ring groove or gasket face can expose those pores and create a leak path even when the unmachined casting looked acceptable. Qualify the actual production machining depth and route, not a shallow cosmetic skim on a selected sample.
Use inspection that answers the functional question. Radiography may help locate density changes in a chosen view; a machining trial reveals exposure on the specified surface; a leak test evaluates the completed boundary under a stated medium, pressure and duration. If impregnation is proposed, approve its material compatibility, process control and test sequence separately rather than using it to excuse unstable casting.
Inspect the finished machined state
First-article evidence should identify tool revision, cavity, casting machine, alloy, fixture revision and CNC program. Measure critical dimensions after the operations that can change them. Deburring must preserve sealing edges and thread starts. Cleanliness requirements need a named method and acceptance limit where chips or media could damage the product.
Production control should include tool-wear offsets, fixture checks, first-off approval and reaction rules for interrupted cycles or casting drift. Casting and machining data should remain traceable by cavity and batch so an exposed-pore pattern or positional shift can be investigated. Buyers should send the controlled CAD, 2D drawing, annual demand, machined zones, tolerances, datums, roughness, leak criteria, finish and inspection method in the RFQ.
Buyer decision
