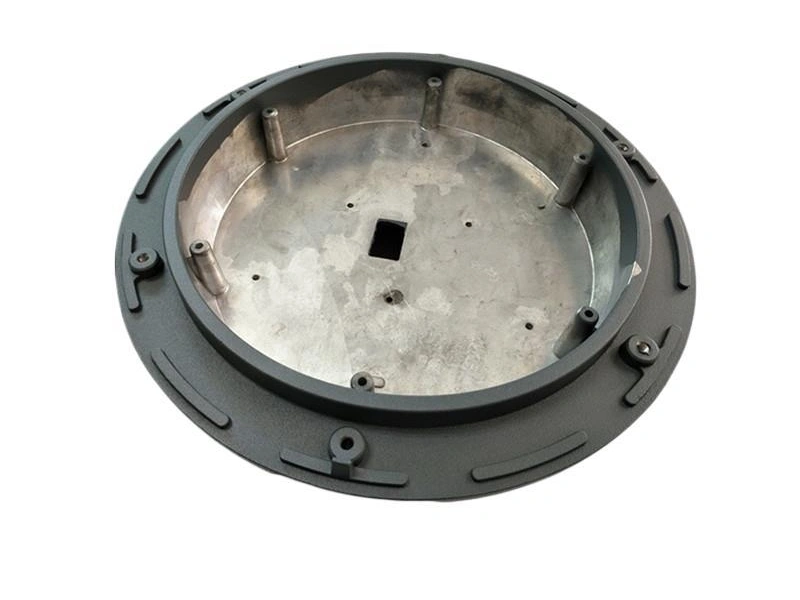

When Should Aluminum Die Cast Parts Use Cast Surfaces Instead of Machined Surfaces?
When Should Aluminum Die Cast Parts Use Cast Surfaces Instead of Machined Surfaces?
Aluminum die cast parts with cast surfaces should be used when the surface is not functional, not an assembly face, not a sealing face, not a high-tolerance area, not visible to the customer and does not affect installation or product performance. Machined surfaces should be used only where accuracy, flatness, sealing, alignment or tight tolerance is required.
Buyers do not need to apply CNC machining to every surface of aluminum die cast parts. By separating cast surfaces and machined surfaces, buyers can reduce machining time, fixture cost, inspection workload and total manufacturing cost.
1. When Cast Surfaces Are Usually Acceptable
Cast Surface Area | Why It Can Remain As-Cast | Buyer Benefit |
|---|---|---|
Non-functional surfaces | They do not affect fit, sealing, alignment or performance | Reduces unnecessary machining cost |
Non-assembly surfaces | They do not contact mating parts | Shortens machining cycle time |
Non-sealing surfaces | Flatness and roughness are not critical | Avoids extra finishing and inspection |
Internal hidden areas | They are not visible and do not affect function | Controls cost while keeping function stable |
Low-tolerance external surfaces | General die cast tolerance may be acceptable | Reduces fixtures, tools and inspection time |
2. When Machined Surfaces Are Needed
CNC machining for aluminum die casting should be used on features that affect assembly, sealing, fastening, bearing fit, datum control and tight tolerance performance.
Machined Surface Area | Why CNC Machining Is Needed | Buyer Should Define |
|---|---|---|
Threaded holes | Threads usually require drilling and tapping after casting | Thread size, depth and inspection method |
Mounting holes | Hole position and diameter affect assembly fit | Hole tolerance, position and mating part requirement |
Sealing faces | Flatness and roughness affect sealing performance | Flatness, roughness and sealing standard |
Locating surfaces | Control how parts align during assembly | Datum, tolerance and measurement method |
Bearing holes | Require accurate diameter, roundness and surface quality | Fit tolerance, surface finish and inspection requirement |
Tight tolerance areas | Die casting alone may not meet precision requirements | Critical dimensions and tolerance stack-up |
3. How Tooling Affects Cast and Machined Surfaces
Tool and die making affects both cast surfaces and machined surfaces. Tooling must provide enough machining allowance, stable datums, proper parting line placement and controlled porosity near machined areas.
Tooling Factor | Effect on Surface Planning | Buyer Risk if Ignored |
|---|---|---|
Machining allowance | Ensures machined faces can clean up properly | Rejected machined surfaces or mold modification |
Datum planning | Supports stable fixture setup and inspection | Unstable hole position and inspection disputes |
Porosity control | Reduces pores exposed on machined sealing faces | Leakage, functional failure or rework |
Parting line placement | Affects cast surface appearance and trimming | Extra finishing cost or cosmetic defects |
4. Material Comparison for Surface Planning
Surface planning varies by material route. Zinc die casting precision parts may focus more on fine details and cosmetic surfaces. Copper die casting machined parts may need closer control of conductive contact surfaces and functional faces. A custom metal casting service review can help buyers decide which surfaces should be cast, machined or finished.
5. Cost Impact of Cast vs Machined Surface Planning
Surface Decision | Cost Impact | Best Practice |
|---|---|---|
Keep non-functional surfaces as-cast | Reduces machining time and fixture complexity | Use die casting to form the main geometry efficiently |
Machine only functional surfaces | Controls cost while meeting performance needs | Mark critical surfaces clearly on drawings |
Over-machine all surfaces | Increases cost, inspection time and lead time | Avoid unless every surface has a functional reason |
Plan post machining before tooling | Reduces rework and mold modification risk | Confirm allowance, datums and tolerances early |
6. Summary
Surface Type | Recommended Choice |
|---|---|
Non-functional, non-assembly and hidden surfaces | Use cast surfaces if appearance and tolerance are acceptable |
Threaded holes and mounting holes | Use CNC machining |
Sealing faces, locating faces and bearing holes | Use machined surfaces with defined tolerances |
Tight tolerance areas | Use CNC machining with clear inspection standards |
In summary, aluminum die cast parts should use cast surfaces where the surface does not affect function, assembly, sealing, tolerance or appearance. Machined surfaces should be used for holes, threads, sealing faces, locating surfaces, bearing holes and tight tolerance areas. Proper planning helps reduce machining time, fixture cost, inspection cost and total manufacturing cost.
