Can Custom Die Casting Include CNC Machining and Surface Finishing?

Yes. Custom die casting can include CNC machining and surface finishing when those operations are planned with the casting from the start. The casting drawing must define machining stock, datums and function-sensitive zones; the finish specification must define preparation, appearance, masking and acceptance. Integrating the work reduces handoff ambiguity, but it does not make casting defects disappear or mean that every feature should be machined.

Why CNC machining is added

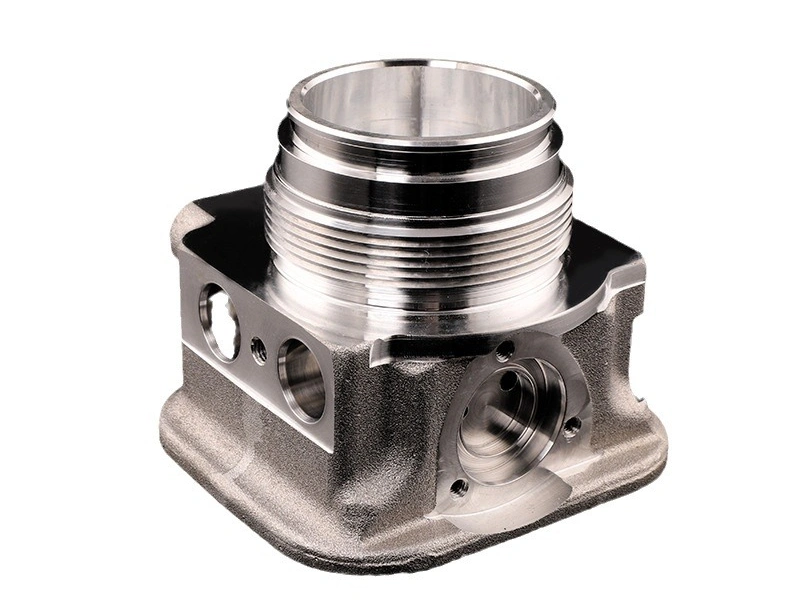

Pressure die casting forms complex near-net geometry, yet some interfaces need a controlled cut. Common examples are bearing bores, sealing faces, threaded holes, precision dowel locations, valve passages and assembly datums. Machining can establish size, location, flatness or surface condition where the as-cast process and function do not align.

The decision should be feature-specific. A noncritical clearance hole may remain cast, while a bore that locates a shaft may need machining and gauging. Applying CNC work to every surface adds cost and can expose internal discontinuities unnecessarily. The drawing should distinguish cast tolerances, machined tolerances and final-state acceptance.

Design casting and CNC together

Machining allowance is not simply extra metal everywhere. Too little stock risks interrupted cleanup after casting variation; too much increases cutting time, distortion and the volume in which porosity can be exposed. The appropriate stock depends on local geometry, casting process, locating strategy and the required result. It must be confirmed from the actual tool and part.

Fixtures should locate from stable, accessible features related to product datums. If the machine shop references a trim edge while final inspection references a mounting pad, the part can pass one operation and fail assembly. An integrated CNC machining plan should document setup datums, clamping, program revision, tool life controls, burr removal and washing.

Select a surface finish by function

Finishing may provide appearance, environmental protection, electrical isolation or continuity, texture, wear behavior, or a cleanable surface. Painting and powder coating are different systems with substrate preparation, film build and cure considerations. Plating is common on selected zinc components but depends heavily on substrate and polishing quality. Anodizing is an aluminum conversion route, yet cosmetic response on die-cast alloys must be validated rather than assumed from wrought aluminum.

Choose the complete system for the named alloy and environment. Specify coating standard or approved process, color and gloss reference, texture, thickness where functional, corrosion or adhesion test, and any restricted substances. The supplier should explain pretreatment and handling through its post-processing scope.

Finishing cannot hide every defect

Coating can reveal rather than conceal flow marks, cold shuts, blisters, pores, trim scars and polishing variation. Thick film can soften detail or interfere with holes and mating surfaces. Aggressive polishing can move edges and dimensions. Appearance standards therefore need to start with casting zones, gate and ejector placement, trim quality and allowed substrate conditions.

Use named cosmetic surfaces and physical boundary samples where practical. Define viewing method and separate appearance defects from structural acceptance. A decorative rejection rule should not silently apply to hidden surfaces, and a visually smooth part should not be treated as proof of internal integrity.

Control masking, rack and contact points

Threads, ground pads, bearing bores, sealing faces and electrical contacts may need to remain uncoated. Mark these areas on the drawing and state whether masking witness is allowed. Finish suppliers also need rack, hook or contact locations. An unapproved contact point on a visible face can reject otherwise functional parts; a coated ground pad can stop an assembly.

Plan the order of operations. Some features are best machined before coating, others may require cleanup afterward. Post-finish machining can break protection at an edge and create chips; machining first requires masks and allowance for film build. There is no universal sequence. The correct route follows interface function and test evidence.

Inspect the delivered state

Stage inspection prevents wasted processing, but final release should cover characteristics that downstream work can change. Check casting quality before expensive finish; verify machined features after CNC; recheck coating-sensitive fit, appearance, electrical contact and cleanliness after finishing. Records should remain tied to lot, cavity, machining route and finish batch where traceability is required.

When machining opens a pore on a pressure boundary, responsibility cannot be settled by saying the as-cast surface passed. The RFQ must define the delivered functional requirement and how casting and machining sources respond. One coordinated supplier can simplify that responsibility, provided the purchase order names the final acceptance rather than merely listing operations.

What buyers should provide

• Controlled cast and finished drawings with shared datums.

• Marked machined features, stock intent, threads, seals and burr limits.

• Named alloy and its allowed material condition.

• Finish specification, approved color or texture, visible zones and masks.

• Assembly, leak, electrical, corrosion, cleaning and appearance tests.

• Cleanliness, preservation, packaging and handling requirements.

Integrated casting, machining and finishing are valuable because one technical definition can control all three stages. The buyer should still review each handoff. The desired output is not an as-cast blank plus two service names; it is a finished component whose datums, surfaces and function have been verified in the condition actually delivered.
