What Information Is Needed for a Custom Die Casting Quote?
What Information Is Needed for a Custom Die Casting Quote?

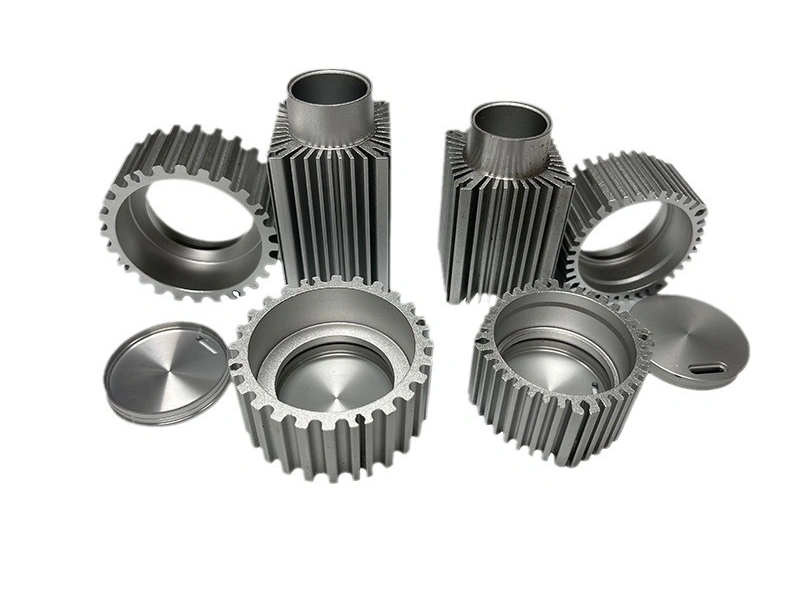

To get an accurate custom die casting quote, buyers should provide 2D drawings, 3D CAD files, material requirements, surface finish requirements, tolerance standards, annual volume or batch quantity, assembly requirements, application environment, and the expected prototype or mass production schedule. The more complete the information is, the easier it is for the supplier to evaluate mold structure, material usage, tooling cost, post-processing, inspection requirements, and delivery time.
A custom die casting quote is not only a simple part price. It is a complete manufacturing evaluation that includes part design, casting feasibility, tooling difficulty, alloy selection, secondary machining, surface treatment, quality inspection, packaging, and production planning. If key information is missing, the quotation may be less accurate or require multiple rounds of clarification before production can move forward.
1. Basic Information Needed for a Custom Die Casting Quote
Information Needed | Why It Matters | How It Affects the Quote |
|---|---|---|
2D drawing | Shows dimensions, tolerances, critical surfaces, threads, hole positions, and inspection points | Helps estimate machining, inspection, and dimensional control requirements |
3D CAD file | Provides complete part geometry for mold design and manufacturability review | Helps evaluate mold structure, parting line, draft angle, wall thickness, and material flow |
Material requirement | Different alloys affect strength, weight, corrosion resistance, conductivity, casting difficulty, and cost | Helps calculate material cost, processing risk, and application suitability |
Surface finish requirement | Finishing affects appearance, corrosion resistance, coating performance, and final product value | Helps estimate polishing, blasting, coating, painting, plating, or other post-process costs |
Annual volume or batch quantity | Production volume affects tooling amortization, unit cost, production method, and delivery planning | Helps calculate mold investment, unit price, and mass production feasibility |
Tolerance requirements | Tight tolerances may require post-machining, special inspection, or process control | Helps estimate machining cost, quality control cost, and production risk |
Assembly requirements | Assembly fit affects hole accuracy, sealing faces, mounting surfaces, inserts, and threaded areas | Helps identify critical features that may need machining or inspection |
Application environment | Temperature, corrosion, load, vibration, water exposure, or outdoor use can change material and finish selection | Helps avoid material mismatch and finishing failure after production |
Prototype or mass production schedule | Lead time requirements affect tooling priority, sample production, inspection, and production planning | Helps estimate delivery time and production route |
2. Why 2D Drawings and 3D CAD Files Are Important
2D drawings and 3D CAD files are the most important documents for a custom die casting quotation. A 3D CAD file helps the supplier understand the complete part shape, wall thickness, ribs, bosses, holes, draft angles, undercuts, and mold release direction. A 2D drawing helps define tolerances, threads, surface roughness, datum references, material notes, and inspection requirements.
If the buyer only provides a photo or rough sample, the supplier may still provide an initial estimate, but the quote will be less accurate. For complex parts, proper design support can help check whether the geometry is suitable for die casting before tooling starts.
File Type | Main Purpose | Best Use in Quotation |
|---|---|---|
3D CAD file | Shows complete geometry and part volume | Used for mold feasibility, material calculation, and tooling review |
2D drawing | Defines tolerance, surface finish, threads, notes, and critical dimensions | Used for machining, inspection, and quality control planning |
Sample part | Shows actual product structure, finish, and assembly condition | Useful for reverse engineering, redesign, or replacement projects |
Product photos | Shows appearance, usage direction, and visible surfaces | Useful for early discussion, but not enough for final quotation |
3. How Material and Surface Finish Requirements Affect the Quote
Material and surface finish requirements have a direct impact on the custom die casting quote. Aluminum, zinc, copper, and brass alloys have different material costs, casting temperatures, flow behavior, mold wear, shrinkage, finishing compatibility, and production difficulty. A wrong material choice can increase tooling risk, machining cost, finishing defects, or long-term product failure.
Surface finish requirements also need to be confirmed early. A part that only needs a functional surface may have a different cost structure from a visible consumer-facing part that requires polishing, painting, powder coating, plating, anodizing, or other post processing. If the finish requirement is unclear, the supplier may not be able to estimate the final part cost accurately.
Requirement | What Buyers Should Specify | Quotation Impact |
|---|---|---|
Material | Aluminum, zinc, copper, brass, or required alloy grade if known | Affects raw material cost, die life, casting difficulty, and part performance |
Surface finish | Painting, powder coating, plating, polishing, blasting, anodizing, or functional coating | Affects post-process cost, appearance standard, corrosion resistance, and lead time |
Surface roughness | Required Ra value or acceptable cosmetic standard if available | Affects machining, polishing, inspection, and finishing process selection |
Color or appearance | Color sample, texture requirement, gloss level, or visible surface definition | Affects finishing method, quality control, and cosmetic rejection risk |
4. Why Quantity and Production Schedule Matter
Annual volume, batch quantity, and production schedule are important because die casting involves tooling investment. A part needed for 100 samples, 5,000 pieces, or 100,000 pieces per year may require different tooling plans, production methods, quality control levels, and cost calculations.
If the buyer needs prototypes first, the supplier may evaluate a prototype route before investing in full production tooling. If the buyer is ready for mass production, the quotation should include mold cost, unit cost, expected production capacity, inspection requirements, and delivery schedule.
Quantity Information | Why It Matters | Supplier Evaluation |
|---|---|---|
Prototype quantity | Helps confirm whether the project is still in validation stage | Prototype method, sample lead time, early design risk |
First batch quantity | Helps plan tooling, sampling, production setup, and delivery | Initial production cost, batch inspection, packaging, and logistics |
Annual volume | Helps evaluate tooling amortization and long-term unit price | Mold life, production capacity, automation possibility, cost optimization |
Target delivery date | Helps check whether the project schedule is realistic | Tooling lead time, sample approval, production window, finishing schedule |
5. How Tolerance and Assembly Requirements Change the Cost
Tolerance requirements can significantly change a die casting quote. Some dimensions can be controlled directly through the casting process, while critical holes, sealing surfaces, bearing positions, threaded areas, or assembly interfaces may require secondary machining. If the drawing does not clearly mark critical dimensions, the supplier may not know which areas require tighter control.
Assembly requirements are also important. Parts used in housings, brackets, connectors, pump bodies, valve bodies, or structural assemblies often have critical fit areas. With proper engineering support, these areas can be reviewed before tooling so that the supplier can plan post-machining, inspection, and quality control correctly.
Requirement Type | What to Confirm | Cost Impact |
|---|---|---|
Critical dimensions | Hole location, flatness, bore diameter, sealing surface, thread accuracy, datum features | May require CNC post-machining and detailed inspection |
Assembly fit | Matching parts, fasteners, inserts, gasket areas, alignment points, mating surfaces | Affects machining allowance, tolerance control, and fixture design |
Functional surfaces | Wear surface, sealing area, heat contact surface, conductive area, cosmetic face | Affects surface finish, machining, coating, and inspection requirements |
Inspection standard | CMM report, material certificate, surface inspection, pressure test, or other quality documents | Affects inspection time, testing cost, and delivery documentation |
6. How Tooling Information Affects the Custom Die Casting Quote
For die casting projects, tooling is one of the most important cost items. The supplier needs to evaluate mold structure, cavity number, slider design, ejector layout, cooling system, gate position, parting line, die material, and expected mold life. This is why tool and die making should be considered early in the quotation stage.
If the part has undercuts, thin walls, deep ribs, complex bosses, tight cosmetic surfaces, or high annual volume, the tooling design may become more complex. Clear design files and production expectations help the supplier quote the mold cost more accurately and reduce the risk of tooling changes later.
Tooling Factor | Why It Matters | Quotation Impact |
|---|---|---|
Part complexity | Complex geometry may require sliders, inserts, or special mold structures | Affects mold cost and tooling lead time |
Expected mold life | High-volume projects need more durable tooling | Affects die material, heat treatment, and maintenance planning |
Cavity number | Multi-cavity tools can improve production efficiency for high-volume parts | Affects initial mold cost and long-term unit cost |
Post-machining allowance | Some features need extra material for later machining | Affects casting design, machining cost, and inspection plan |
7. Summary
Question | Answer |
|---|---|
What is needed for a custom die casting quote? | Buyers should provide drawings, CAD files, materials, surface finish, tolerances, quantity, assembly needs, application environment, and schedule. |
Why are drawings and CAD files important? | They help evaluate part geometry, mold structure, wall thickness, tolerance, machining, and inspection requirements. |
Why does quantity affect the quote? | Quantity affects mold investment, tooling amortization, unit cost, production planning, and lead time. |
Why do tolerances affect cost? | Tight tolerances may require post-machining, special fixtures, CMM inspection, or additional quality control. |
How can buyers get a faster quote? | Provide complete technical files, material and finish requirements, expected quantity, and target schedule from the beginning. |
In summary, the most useful information for a custom die casting quote includes 2D drawings, 3D CAD files, material requirements, surface finish expectations, quantity, tolerances, assembly requirements, application environment, and production schedule. Complete information helps Neway evaluate design feasibility, tooling cost, casting difficulty, post-processing, inspection requirements, and lead time more accurately. If the buyer is not sure whether the part is ready for quoting, Neway can provide design support, engineering support, tooling review, and post-processing planning before production starts.
