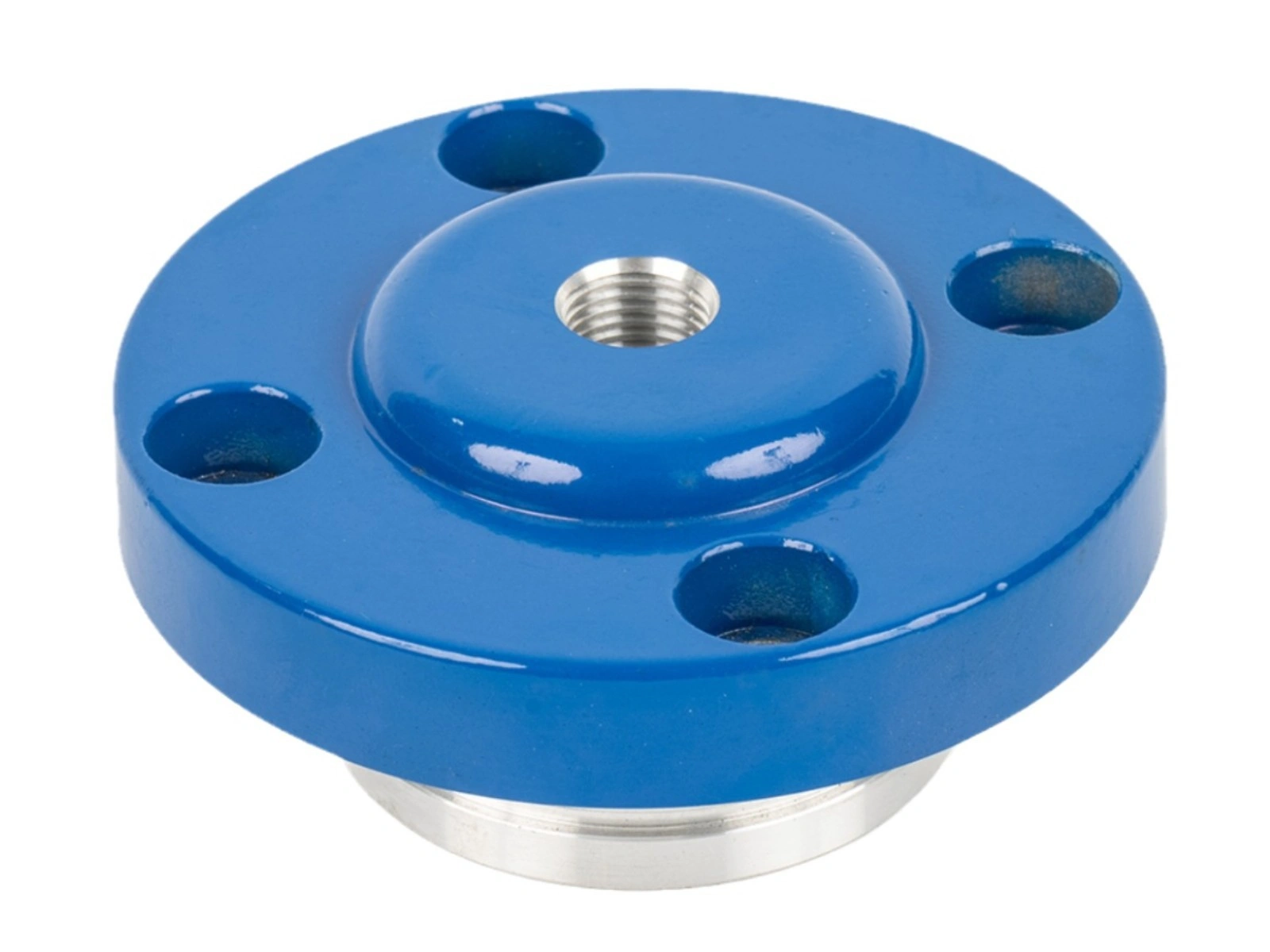

What Is Copper Die Casting and When Should Buyers Use It?
Copper die casting is a pressure-casting route for selected copper-base alloys in which reusable tooling forms a near-net custom part. Buyers should use it when the part needs repeat production and integrated geometry, and when a named alloy supplies electrical, thermal, fluid-service or mechanical behavior worth the higher material and tooling burden. Confirm that the proposed grade is suitable for the supplier's exact casting route before releasing a die.
Copper die casting is grade specific
The broad term can include designated die-casting brasses or other copper-base grades, but it does not mean any copper, brass or bronze can be injected into a steel die. Alloying changes liquidus range, flow, shrinkage, conductivity, strength, corrosion response and the thermal load imposed on tooling. A familiar wrought or gravity-casting designation may need another manufacturing route.
The drawing should name the grade, controlling specification and material condition. If the grade is open, give the supplier functional requirements and ask for a documented proposal. The copper die casting process is not approved until alloy availability, tooling concept and validation all refer to the same part.
When the route adds value
The route is strongest when a repeat component combines a copper-base function with castable features: terminals with mounting bosses, thermal bodies with brackets, or fluid components with flanges and external passages. Near-net forming may reduce full-stock machining and assembly. Selected bores, contacts, threads and sealing surfaces can still be machined.
It is less persuasive for low or uncertain demand, unstable geometry, parts whose dominant value is maximum bulk conductivity, or grades not demonstrated in pressure casting. Wrought bar, forging, fabrication, sand or permanent-mold casting, and full CNC machining may preserve properties or reduce tooling exposure. Compare production-intent designs rather than identical shapes.
Project driver | Copper die casting may fit when | Evidence before commitment |
|---|---|---|
Electrical path | The selected grade, section and contacts meet the circuit need | Chemistry plus finished-joint resistance and temperature rise |
Thermal path | Integrated geometry improves the complete heat route | System thermal test under stated boundaries |
Fluid component | Grade-media compatibility and near-net geometry both add value | Material review and leak or pressure test after machining |
Wear component | The grade and surface pair are suited to load, speed and lubrication | Application-relevant wear and dimensional evidence |
Repeat demand | Forecast use can justify a demanding production die | Tool scope and total-cost comparison over realistic demand |
Why tooling needs special review
Copper-base alloys can subject a die to severe thermal cycling. Grade, melt and die temperatures, local gate impingement, cycle strategy and geometry affect erosion, checking, soldering and dimensional drift. The supplier should explain steel, heat treatment, cooling, inserts, gate, overflow, venting and maintenance. Tool life cannot be quoted responsibly as one universal number.
Mark conductive paths, machined contacts, sealing zones and thin-to-heavy transitions during DFM. Process features and ejector contact should avoid damaging those functions. Samples must identify cavity, alloy lot and tool state so a good result can be traced and repeated.
Test function after secondary work
Chemistry verification confirms material identity within the agreed method. It does not prove a joint, heat path or pressure boundary. Machining can expose discontinuities; plating changes contact and dimensions; assembly force changes interface resistance. Acceptance should therefore include the delivered condition and, where needed, the actual mating assembly.
Electrical projects may specify probe locations, current, duty and permitted resistance or temperature rise. Thermal projects need heat input and boundary temperatures. Fluid projects need medium, pressure, temperature, duration and leakage rule. Wear projects need the mating material, load, speed and lubrication. The test follows the failure mode.
Check supplier route evidence
Ask the supplier which exact grades it has pressure cast, on what section range and with which secondary operations. Review how it controls chemistry, melt handling, die thermal load, cavity identity and tool maintenance. A product list is less useful than a DFM that explains where filling, shrinkage, erosion or machining exposure can affect this drawing.
The guide on when to choose copper for die casting can frame the initial comparison. Production approval still needs evidence from the named grade, tool and finished component. If the supplier proposes another casting route, compare it openly instead of forcing an unsuitable grade into pressure tooling.
Before freezing the design, compare pressure die casting with wrought stock, forging, fabrication and other casting routes at equal function. A large simple conductor may favor wrought material, while a feature-dense repeat part may justify tooling. Record why the chosen route wins on properties, geometry, demand and validation.
RFQ information for route selection
Controlled 3D model, 2D drawing and forecast order pattern.
Named alloy standard or functional basis for a grade proposal.
Current, heat, fluid, load, wear and environmental conditions.
Contact, seal, bore, thread, datum, finish and internal-quality zones.
Machining, plating, cleaning, traceability and final test scope.
Buyers should choose copper die casting only after the grade, pressure-casting route and finished-part test agree. The route can be valuable for repeat, feature-rich copper-base components, but the material name alone is not evidence of suitability.
