What Is an Aluminum Die Casting Mold?
What Is an Aluminum Die Casting Mold?

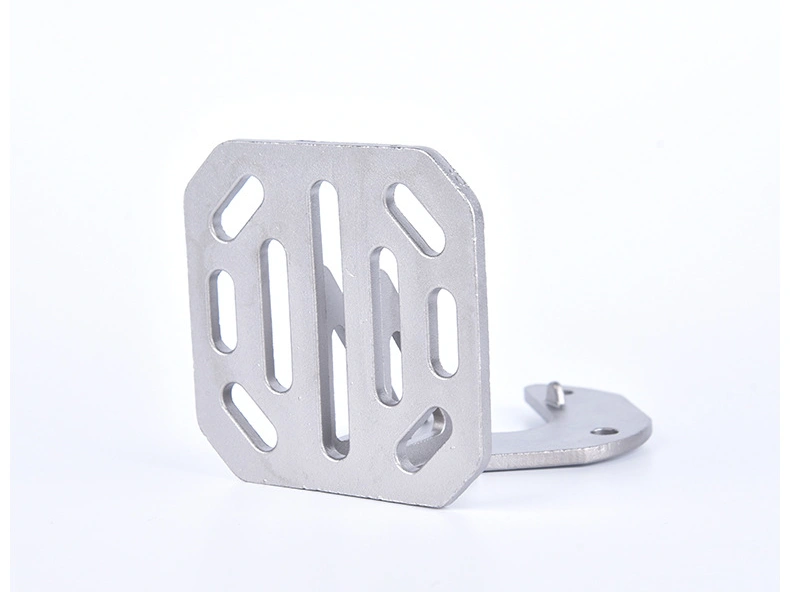

An aluminum die casting mold is the core tool used to form molten aluminum alloy into custom die cast parts. The mold system usually includes cavities, cores, gates, runners, vents, cooling channels, ejector pins, inserts and parting line structures. These features control how aluminum fills the mold, cools, solidifies and is ejected during production.
For buyers planning aluminum die casting projects, the mold should not be viewed only as a one-time tooling fee. It is a key production investment that affects unit cost, quality stability, CNC machining cost, surface quality, scrap rate and mass production risk.
1. Main Functions of an Aluminum Die Casting Mold
Mold Area | Main Function | Impact on Die Cast Parts |
|---|---|---|
Cavity | Forms the external shape of the aluminum die cast part | Affects dimensions, surface quality and repeatability |
Core | Forms internal features, holes, ribs, bosses and complex structures | Affects geometry, assembly features and mold complexity |
Gate and runner | Guide molten aluminum into the cavity | Affect filling, flow marks, porosity risk and surface appearance |
Venting | Helps trapped air escape during injection | Reduces gas porosity, air traps and filling defects |
Cooling system | Controls mold temperature and solidification | Affects shrinkage, warpage, cycle time and dimensional stability |
Ejector system | Pushes the part out after solidification | Affects ejection marks, deformation risk and production stability |
2. How Mold Quality Affects Aluminum Die Casting Results
Mold quality directly affects whether aluminum die cast parts can be produced consistently. A good mold improves filling stability, reduces porosity and flash, controls cooling, supports better tolerances and helps keep production output stable.
Quality Area | How the Mold Affects It | Buyer Risk if Mold Quality Is Poor |
|---|---|---|
Dimensions and tolerances | Cavity precision, shrinkage allowance and cooling control affect final size | Out-of-tolerance samples and unstable batch dimensions |
Appearance | Gate, parting line, ejector marks and cavity finish affect visible surfaces | More polishing, coating defects and cosmetic rejection |
Porosity | Runner, gate and venting design affect trapped air and filling quality | Weak parts, exposed pores after machining and higher scrap rate |
Flash and burrs | Mold fit and parting line quality affect metal leakage | More trimming, deburring and labor cost |
Mass production stability | Cooling, ejection and mold life affect repeated production | Longer cycle time, downtime and delivery risk |
3. Why the Mold Affects CNC Machining After Die Casting
Many aluminum die cast parts need CNC machining after die casting for holes, threads, sealing faces, mounting faces, datums and high-tolerance features. Mold design affects whether these areas have enough machining allowance and stable reference surfaces.
CNC Related Mold Factor | Why It Matters | Buyer Benefit |
|---|---|---|
Machining allowance | Ensures enough material remains for final machining | Reduces insufficient cleanup and rework risk |
Datum planning | Helps fixtures locate parts consistently | Improves hole position, flatness and inspection repeatability |
Porosity control | Reduces defects exposed during machining | Improves sealing faces and machined surface quality |
Dimensional stability | Reduces variation before post-machining | Lowers machining adjustment and inspection cost |
4. How Aluminum Molds Compare With Other Die Casting Tooling
Aluminum die casting molds are often used for lightweight structural parts, housings, heat dissipation parts and medium to high volume production. Zinc die casting tooling is often used for smaller, more detailed and appearance-focused zinc parts. Both require careful mold design, but the material behavior, cooling, shrinkage and surface expectations may be different.
Tooling Type | Typical Use | Main Buyer Focus |
|---|---|---|
Aluminum die casting mold | Lightweight housings, structural parts, heat sinks, automotive and industrial parts | Cooling, shrinkage, porosity, machining allowance and production stability |
Zinc die casting tooling | Small precision parts, hardware, decorative parts and complex details | Fine details, surface appearance, flash control and decorative finishing |
Custom metal casting tooling | Different metal casting projects based on material and part function | Material behavior, tooling cost, quality standard and total manufacturing cost |
5. Summary
Question | Answer |
|---|---|
What is an aluminum die casting mold? | It is the mold system used to form molten aluminum into custom die cast parts. |
What does the mold include? | It includes cavities, cores, gates, runners, vents, cooling channels, ejectors and inserts. |
Why is mold quality important? | It affects dimensions, tolerances, appearance, porosity, flash, cycle time and mass production stability. |
Why should buyers care about mold investment? | The mold affects future unit cost, CNC machining cost, quality stability and production risk. |
In summary, an aluminum die casting mold is the core tool used to produce custom aluminum die cast parts. It controls filling, cooling, forming and ejection. For medium and high volume aluminum die casting projects, mold quality is a key factor that affects unit cost, quality stability, CNC machining cost and long-term mass production performance.
