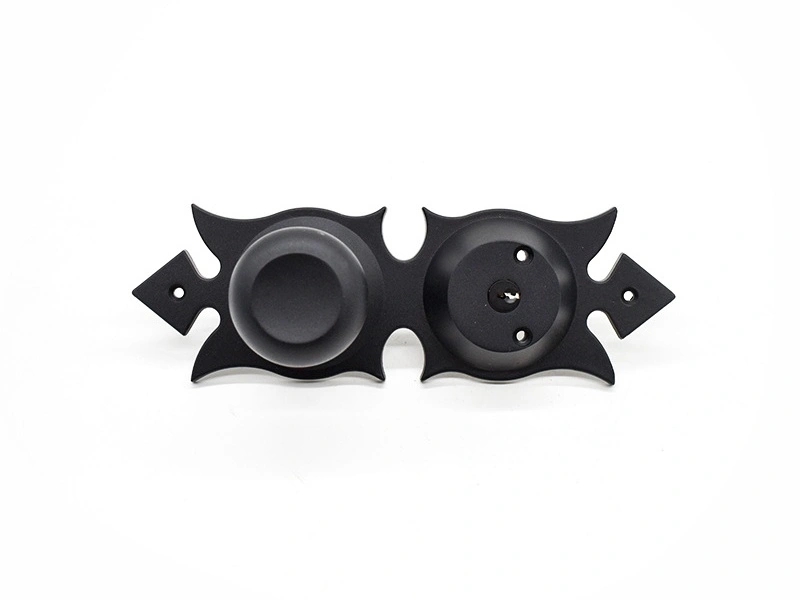

How do Zamak alloy properties affect dimensional stability and surface finish?
Zamak alloy properties affect dimensional stability through strength, creep behavior, thermal response and time-dependent metallurgical change, and they affect surface finish through fluidity, ductility and the substrate presented to polishing or coating. Alloy is only one cause. Gate layout, die temperature, cooling, ejection, section transitions, residual stress, machining, pretreatment and coating often have equal or greater influence on the measured part.
Separate three types of dimensional change
First is immediate process variation: cavity fill, solidification, die temperature, ejection and trimming determine the shape measured soon after casting. Second is thermal movement: the component expands or contracts as temperature changes, sometimes differently from mating materials. Third is time-dependent change: residual stress can relax, alloy structure can age, and a loaded part can creep. Treating all three as "alloy shrinkage" sends corrective action to the wrong place.
A dimensional study should record casting date, measurement date, temperature, restraint, machining state and finish state. Tight assembly features may need measurements after a defined storage interval or thermal conditioning rather than only at first article. If the part remains loaded, measure movement at the relevant load and service temperature.
How common Zamak grades change the risk
Alloy direction | Potential benefit | Dimensional or finish question | Useful evidence |
|---|---|---|---|
Zamak 3 baseline | Balanced castability, ductility and dimensional behavior | Does process distortion or creep consume the assembly allowance? | Time-separated capability and assembled conditioning |
Zamak 5 with more copper | Higher hardness and short-term strength | Does added strength solve the problem without creating an impact or aging concern? | Functional load plus aged dimensional comparison |
Zamak 2 with still more copper | Wear and sustained-contact performance | Is dimensional aging acceptable at tight fits? | Wear test and dimensions at agreed intervals |
Zamak 7 for fluidity | Fill of thin walls and fine surface detail | Does the production window prevent cold shuts and cosmetic flow defects? | Trial across difficult features and approved finish samples |
Zamak 3 is often the dimensional baseline because it has a balanced property profile. More copper in Zamak 5 and Zamak 2 can improve hardness and load resistance but makes time-based dimensional validation more important. A drawing should name the material standard and grade; it should not rely on an informal family name.
Process controls flatness, position and repeatability
Flatness and feature position can shift when thick bosses cool more slowly than adjacent walls, ribs terminate abruptly, ejectors bend a warm casting, or trimming releases residual stress. Gate location and fill pattern influence local temperature and pressure. Die thermal balance, cooling, spray, cycle time and ejection timing then determine whether the distortion repeats or wanders.
Review the die concept with functional datums visible. Support the part during ejection and trimming where practical, keep abrupt mass changes away from tight datums, and avoid measuring an unstable free state when the requirement applies only in assembly. A checking fixture may reproduce assembly restraint, but the drawing and inspection agreement must say so.
If dimensions drift, sort evidence by cavity, machine, shift, die temperature, casting age and finishing batch. An alloy change is justified only when data indicate that material behavior is controlling. Stable cavity-to-cavity offsets point toward tooling; changes with cycle or temperature point toward process; movement with time or sustained load points toward aging or creep.
Surface finish starts in the die but ends after finishing
Fluidity and ductility influence how an alloy reaches thin sections and reproduces texture. They do not guarantee a defect-free visible face. Trapped gas, cold laps, flow marks, solder, die erosion, lubricant, ejector impressions and gate removal can all damage appearance. Zamak 7 may help demanding fill, while Zamak 3 remains a common decorative baseline, but both require a suitable gate, vent and thermal process.
Surface roughness is not a sufficient cosmetic specification. Buyers should define visible zones, texture, permitted flow or gate evidence, edge condition, polishing direction and an approved limit sample. Lighting and viewing conditions may be needed for appearance inspection. Those controls make rejection decisions repeatable without pretending that one numerical roughness value describes every plated or painted surface.
Polishing, plating and coating can reveal or create problems
Polishing removes the cast skin and may expose pores. Machining does the same at bores, sealing faces and datum pads. Pretreatment must clean and activate the substrate without trapping chemistry in pores or recesses. Decorative plating can highlight waves and pits rather than hide them. Organic coating adds thickness at edges and holes and can alter fits.
Plan the post-machining datum sequence and finish route before tolerance release. State whether a dimension applies as-cast, machined, pre-coat or finished. Masked surfaces, rack locations and coating allowances belong in the controlled drawing or finish specification. Inspect final assembly characteristics after the coating state that will enter production.
A verification plan that identifies the real cause
Measure representative castings by cavity soon after casting and at defined later intervals under controlled temperature.
Record die, machine, process window, trim and handling conditions so dimensional change can be traced.
Condition loaded assemblies at the stated temperature and measure residual movement or function.
Run machining, polishing, pretreatment and finish trials on production-intent castings, not idealized coupons alone.
Approve cosmetic limit samples and evaluate functional dimensions in finished state.
Use sectioning or other targeted internal inspection where opened pores or structural discontinuities are a known risk.
What buyers should send with the RFQ
Provide CAD and drawing, proposed grade and standard, annual volume, dimensional datums, assembly restraint, service temperature, sustained loads, measurement timing, machining stock, coating stack, visible classes and acceptance tests. Identify which dimensions affect fit and which surfaces will be polished or plated. Ask the supplier to state assumptions about die layout, cavity count, ejection, trim, measurement fixture and finish source.
Zamak properties matter, but they work through a real die and a real finishing line. Choose the grade for load, wear, fill and aging needs; design the process to control thermal history and residual stress; and verify dimensions and appearance after the operations that can change them. That approach separates a material problem from a tooling, process or coating problem before expensive corrective action begins.
