How Does Tooling Affect Die Cast Part Cost?
How Does Tooling Affect Die Cast Part Cost?

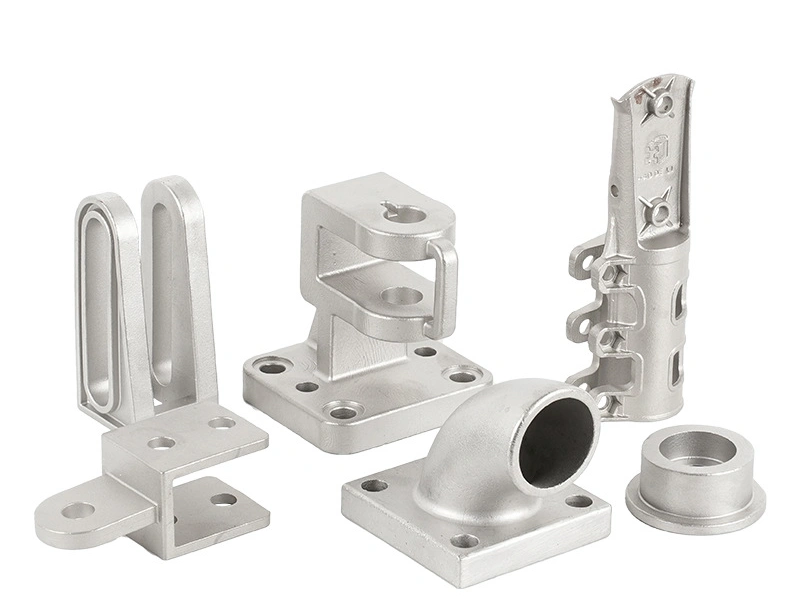

Die casting tooling affects die cast part cost because it is the main upfront investment that supports repeated production. Tooling cost depends on part complexity, mold material, cavity number, sliders, inserts, cooling design, venting, expected mold life, tolerance requirements, surface requirements, and trial needs.
Buyers should not only compare tooling price. A lower mold price may lead to higher long-term cost if the tooling causes unstable dimensions, high scrap rate, long cycle time, frequent maintenance, excessive flash, poor surface quality, or extra CNC machining. For aluminum die casting and other production projects, tooling cost should be evaluated together with unit cost, tool life, scrap rate, cycle time, maintenance cost, and mass production stability.
1. Main Ways Tooling Affects Die Cast Part Cost
Cost Area | How Tooling Affects It | Buyer Cost Impact |
|---|---|---|
Upfront tooling cost | Mold design, material, machining, heat treatment, inserts, and trials create initial investment | Affects project entry cost before production starts |
Unit cost | Stable tooling improves output, reduces defects, and supports repeat production | Helps lower long-term part cost when production volume is stable |
Scrap rate | Poor tooling can cause porosity, shrinkage, flash, deformation, and cosmetic defects | Higher scrap increases real production cost |
Cycle time | Cooling, ejection, and mold stability affect production speed | Longer cycle time increases machine cost per part |
Maintenance cost | Tool wear, poor mold fit, weak inserts, or thermal fatigue increase maintenance needs | Frequent downtime raises long-term cost |
2. Why Complex Parts Increase Tooling Cost
The more complex the die cast part is, the more complex the tooling usually becomes. Deep cavities, thin walls, undercuts, side holes, sliders, inserts, tight tolerances, and cosmetic surfaces can all increase mold design and manufacturing cost.
Part Feature | Why It Raises Tooling Cost | Cost Control Suggestion |
|---|---|---|
Undercuts | May require sliders, lifters, or more complex mold actions | Review whether undercuts can be simplified before tooling |
Thin walls | Need careful flow, gate, venting, and thermal control | Confirm wall thickness feasibility during DFM review |
Deep cavities | Increase tooling difficulty, cooling challenge, and ejection risk | Review draft angle, venting, and ejection layout early |
High cosmetic surfaces | Gate, parting line, ejector marks, and cavity finish must be controlled | Mark cosmetic surfaces before mold design |
Tight tolerances | May require better mold precision, post-machining allowance, and inspection | Apply tight tolerances only to functional dimensions |
3. How Cavity Number Affects Cost and Production Efficiency
Cavity number is another major cost factor. A single-cavity mold usually costs less upfront, but it produces fewer parts per cycle. A multi-cavity mold costs more upfront, but it can improve production output and reduce unit cost for higher-volume projects.
Tooling Option | Best Use | Cost Impact |
|---|---|---|
Single-cavity mold | Lower volume, prototype validation, or simpler production demand | Lower upfront tooling cost but higher unit cost at large volume |
Multi-cavity mold | Medium to high volume production with stable demand | Higher tooling cost but better production efficiency |
Family mold | Projects where related parts can be produced together | Can improve efficiency but requires careful balancing |
High-life production tooling | Long-term mass production projects | Higher initial cost but better tool life and stability |
4. How Volume Spreads Tooling Cost
Tooling cost is easier to justify when annual demand is higher. If a buyer only needs a small quantity, tooling cost per part may be high. If the buyer needs repeated production, the tooling investment can be spread across more parts, reducing the long-term cost impact.
Production Volume | Tooling Cost Effect | Buyer Decision |
|---|---|---|
Prototype or very low volume | Tooling cost may be difficult to spread | Consider prototype validation or alternative production route first |
Low to medium volume | Tooling cost must be balanced with unit cost and project risk | Review soft tooling, trial tooling, or optimized production tooling |
Medium to high volume | Tooling cost becomes easier to amortize | Invest in stable tooling to reduce long-term unit cost |
Long-term mass production | Tool life, cycle time, scrap rate, and maintenance become very important | Choose tooling based on total production cost, not only initial price |
5. Why Good Tooling Can Reduce Long-Term Cost
Good die casting tooling can reduce long-term cost by improving part consistency, lowering scrap rate, reducing flash, improving cycle time, reducing polishing and CNC machining difficulty, and extending mold life. Poor tooling may look cheaper at the beginning but can become more expensive during production.
Good Tooling Result | How It Reduces Cost |
|---|---|
Stable dimensions | Reduces inspection disputes, rework, and assembly problems |
Lower porosity and shrinkage | Reduces scrap, leakage risk, and failed machining surfaces |
Less flash and burrs | Reduces trimming, deburring, polishing, and labor cost |
Better cooling | Improves cycle time and production efficiency |
Longer mold life | Reduces tool replacement, downtime, and maintenance cost |
6. Summary
Question | Answer |
|---|---|
How does tooling affect die cast part cost? | Tooling affects upfront cost, unit cost, scrap rate, cycle time, maintenance cost, and production stability. |
Does complex part design increase tooling cost? | Yes. Complex geometry, sliders, inserts, tight tolerances, and cosmetic surfaces usually increase tooling cost. |
Is multi-cavity tooling more expensive? | Yes, but it can improve production efficiency and lower unit cost when volume is high enough. |
Should buyers choose the lowest tooling price? | No. Buyers should compare tooling cost, unit cost, tool life, scrap rate, cycle time, maintenance, and production stability together. |
In summary, tooling affects die cast part cost through mold complexity, cavity number, material, tool life, cycle time, scrap rate, maintenance, and production stability. Buyers should not only compare tooling price. A better decision is to evaluate tooling cost, unit cost, tool life, scrap rate, cycle time, maintenance cost, and long-term mass production performance together.
