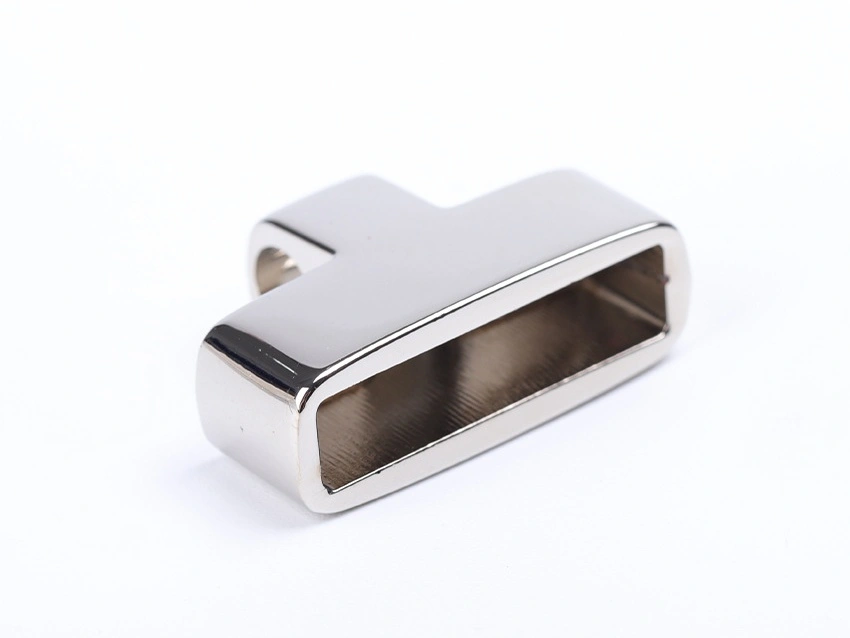

What draft angles are recommended for zinc die cast components?
No single draft angle is recommended for every zinc die cast component. Use more draft as draw depth, internal core grip, texture, surface roughness or slender-feature risk increases; a short polished external wall may use less. The final angle must be agreed from the CAD, die opening direction, alloy, finish, tool steel condition and ejector layout, then confirmed by trials without drag, sticking or distortion.
What draft does during ejection
Draft creates clearance as the die opens and the casting moves along the pull direction. Without enough clearance, a surface slides against die steel while still gripping it. The result may be scratches, galling, matte streaks, bent walls, broken ribs, higher ejector force or accelerated die maintenance.
Zinc contracts around internal cores, so internal pockets and cored bosses often retain the casting more strongly than comparable external faces. Deep surfaces travel farther before clearing. Texture mechanically engages the casting and adds friction. These conditions explain why a universal degree value cannot release all features.
Set draft by feature, not by part label
Feature condition | Draft direction | Risk if reduced | Evidence |
|---|---|---|---|
Short polished external face | May justify a lower angle after review | Visible drag or mismatch if retention is underestimated | Cosmetic trials over the production surface state |
Deep internal pocket | Increase clearance with depth and core grip | Sticking, wall deformation or high ejector load | Ejection-force trend, drag inspection and dimensions |
Textured or etched wall | Coordinate extra draft with texture specification | Scuffing, damaged grain or inconsistent gloss | Approved textured limit sample after finish |
Tall rib or cored boss | Draft both contacting sides and support ejection | Rib bend, pin grip or root cracking | Trial by cavity and dimensional study |
Dimension the taper clearly
Draft changes feature size along depth. A drawing should identify whether the controlled dimension applies at the parting line, tool shutoff, base, tip or another basic plane. Otherwise the designer, toolmaker and inspector can each use a different location and still believe they followed the print.
Include draft in tolerance stacks for mating pockets, clips, ribs and boss diameters. If a bearing, sealing or alignment surface cannot accept taper, shorten the functional land, change its pull direction or machine it. Selective machining can be less risky than maintaining near-zero draft over a deep face, but fixture and stock must be controlled.
Draft and texture must be released together
A polished die surface and a coarse grain do not release alike. Texture depth, direction, local repair and coating can change appearance and friction. Ask the texture or finishing source for a feature-specific recommendation, then have the die caster confirm it against draw depth and ejection. Do not add texture after tooling approval without repeating that review.
Visible zones should define allowable drag, ejector witness, parting flash and local gloss variation. Evaluate production-intent parts after the planned polishing, plating or coating because later finishing can reveal drag or soften texture.
Ejector layout can overrule an adequate angle
A casting may still distort with generous draft if it remains unevenly attached or ejectors push unsupported walls. Map where the casting shrinks onto cores and distribute ejection into stiff regions. Cool deep features consistently and avoid a cluster of high-retention bosses on one side of a broad panel.
Record acceptable ejector locations early. If the product has no non-cosmetic push areas, the tooling solution may need added pads, removable features or a different part orientation. That is a product architecture decision, not a late process adjustment.
Manage low-draft exceptions as controlled risks
A feature may need reduced draft because of packaging, optical alignment, a snap fit or a visible silhouette. Document the functional reason, the exact surface and the dimension plane. Then compare shortening the draw, splitting the surface at the parting line, adding a replaceable insert or machining a limited land. A blanket low-draft note shifts risk to every cavity and future tool repair.
If the exception remains, define a wider trial and maintenance plan. Monitor pickup, polishing frequency, ejection behavior and cavity-to-cavity dimensions. A replaceable insert can localize wear, but its witness and alignment must be acceptable. The tooling review should name the owner and reapproval trigger.
Recheck draft after tool changes
Parting-line repair, insert replacement, texture restoration and polishing can change local taper or surface friction. A die that released cleanly at first article may drag after maintenance even when nominal CAD is unchanged. Include low-draft surfaces in preventive inspection and compare repaired cavities with the approved state.
Flash and mismatch can also mimic a draft problem by scoring the casting during ejection. Inspect shutoffs and parting alignment before increasing lubricant or ejector force. The guidance on avoiding flash, burrs and deformation helps separate release geometry from die-condition causes.
How to validate draft in trials
Inspect all draw surfaces for streaks, galling, pickup, whitening and texture damage.
Compare dimensions and flatness by cavity after ejection, trimming and a defined cooling interval.
Track whether release depends on a narrow lubricant, temperature or cycle condition.
Review die surfaces for early wear or repeated pickup at low-draft zones.
Approve appearance after the final finish and function in the mating assembly.
What to send for a draft review
Provide native CAD, proposed pull direction, visible surfaces, texture specification, depth, mating requirements, functional dimension planes and permitted ejector locations. Identify any face where taper is restricted and why. Ask the die caster to return a color map of draft, undercuts and retention risks with proposed corrective actions.
The recommended draft is the minimum feature-specific angle that releases over the agreed process window without unacceptable surface damage, force or distortion. It cannot be selected responsibly from the words "external wall" or "internal wall" alone. Depth, texture, retention and ejection evidence complete the answer.
