Which part geometries are most suitable for zinc die casting?
Zinc die casting is best suited to compact, repeat-demand parts whose walls and integrated features can be reached by a controlled gate-to-vent flow path, whose thermal mass is reasonably balanced, and whose undercuts can be released by the main die opening or justified slides. Housings, handles, latches, connector bodies and decorative hardware often fit, but product category does not prove suitability. Geometry, finish, load and volume do.
Five signals of a suitable geometry
A clear pull direction. Most walls, ribs, bosses, holes and details can release along one opening direction, with a limited number of valuable side actions.
A connected fill path. Metal can travel from gate through important features to vents and overflows without isolated blind pockets or repeated thin-to-heavy jumps.
Controlled thermal mass. Heavy bosses and pads are cored and blended rather than stacked on thin cosmetic walls.
Integrated value. The casting replaces machining, fabrication or assembly by combining useful structural, locating and appearance features.
Repeat demand. Tooling and process development are supported by program volume, life and stable design ownership.
These signals explain why a feature-rich small housing may be a better die casting than a geometrically simple thick block. Complexity creates value when it is organized around the die; solid mass and inaccessible undercuts create cost without the same benefit.
Geometry screening matrix
Geometry | Why zinc HPDC may fit | Rejection trigger | Alternative or revision |
|---|---|---|---|
Compact thin-wall enclosure with ribs and bosses | Near-net integration, detail and repeat assembly features | Long last-to-fill wall, broad free flatness or dense air traps | Shorten flow, add curvature, revise rib/vent layout |
Decorative handle or trim | Curved form, weight, detail and finish can be integrated | Parting/gate witnesses occupy Class-A surfaces or corrosion system is undefined | Reorient part, move witnesses, define full finish route |

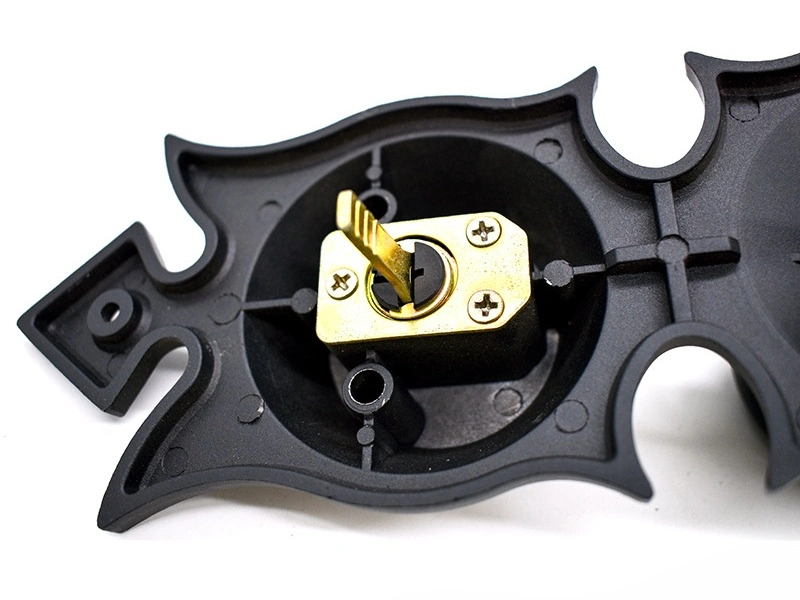

Latch, lock body or compact mechanism | Bosses, pivots, slots and contours can reduce part count | Wear, creep or thread loads lack geometry and test margin | Selective machining, inserts, geometry or alloy review |
Thick solid block | Little near-net advantage | Hot mass, pores and machining still dominate | Core the design or compare machining and another casting route |
Large flat plate | Possible only when value and controls justify it | Projected area, flow distance, flatness and ejection become dominant | Add shape, divide assembly or compare another process |
Undercuts need economic value
A slide can form a side hole, latch window or external groove that removes later machining or assembly. It also adds a shutoff that can flash, moving components that wear, cycle time and maintenance. Count die actions and review their direction, travel, core support, cooling and access for repair.
Before accepting a side action, compare rotating the feature into pull, opening one side, using a split at the parting line or machining the detail. The best route depends on annual demand, functional tolerance, flash access and tooling budget. A complex die is justified when its integrated value persists through the program.
Holes, pockets and core pins set hidden limits
Through-holes along the opening direction are often tool-friendly, but diameter, length and spacing determine core-pin stiffness and die steel strength. Deep blind pockets trap air and increase core grip. A cluster of slender pins can deflect under filling load or leave fragile steel between them.
Use cast pilots where final bore accuracy, sealing or thread quality is better created by CNC machining. That hybrid route can preserve the casting's integrated form while giving functional features a controlled datum. It still requires stock, fixture access and internal-integrity planning.
Cosmetic shapes need process space
A visible curved housing may be well suited to zinc, but gates, overflows, vents, parting lines, ejectors and rack contacts must go somewhere. Reserve non-visible or finish-compatible zones. Rounded transitions help flow and coating coverage, while deep texture, narrow lettering and sharp valleys need additional draft and tool access.
Approve the full finished state. Polishing can reveal pores; plating can magnify waves; coating can soften detail and close fits. A smooth CAD surface is not a cosmetic acceptance standard. Define visible classes, limit samples, lighting, witness marks and finish buildup.
Functional geometry must survive service
Zinc's ability to cast a clip, thin rib or small pivot does not prove service life. Cantilever clips need strain and creep review. Bosses need torque, pull-out and sustained-load evidence. Sliding features need mating material, lubrication and wear tests. Warm assemblies may move under constant stress even when a room-temperature proof test passes.
Pair the geometry review with controlled engineering evidence. State load, constraint, temperature, duty and acceptance. Choose alloy and finish only after those conditions are visible.
RFQ screening checklist
Native CAD, controlled drawing, mating geometry and product revision.
Annual volume, order cadence, program life and target tooling boundary.
Material, loads, temperature, wear, corrosion, finish and visible zones.
Pull direction assumptions, permitted parting/gate/ejector marks and undercuts.
Threads, bores, sealing lands, machining stock, datums and coating state.
Dimensional, functional, environmental, finish and assembly acceptance tests.
Decision rule
A geometry is suitable for zinc die casting when the tooling can form and release it, the metal and air have controlled paths, local masses cool predictably, service loads are supported, and integrated features save enough downstream work to justify the die. When one condition fails, revise the geometry or compare another manufacturing route rather than relying on zinc fluidity as a cure.
This screening method is more useful than a list of "best" products. It lets an OEM distinguish valuable complexity from tool complexity, identify the evidence needed for difficult features, and compare total delivered cost before tooling absorbs the decision.
