Powder Coating Defects on Die Cast Aluminum: Causes, Evidence and Corrective Action

Powder coating defects on die cast aluminum should be investigated as a chain of evidence rather than matched to one cause from a photograph. A pinhole can be associated with gas or volatile release, but crater-like defects can also come from oil, silicone, cleaning residue or incompatible contamination. A blister can involve the substrate, pretreatment, coating interface, trapped moisture or thermal history. The visible shape starts the investigation; it does not finish it.

The first buyer action is containment. Identify affected part and coating lots, rack positions, dates, powder batches, casting sources and process changes. Preserve uncleaned defect samples where possible. Recoating every suspect part before the mechanism is understood destroys evidence and may add thickness, heat exposure and dimensional risk.

A useful investigation answers five questions: what defect is present, where it occurs, which interface failed, which process records correlate with it and whether a controlled trial can reproduce or remove the condition. That sequence separates coating symptoms from unsupported blame.

How to Classify a Powder Coating Defect Before Investigating It

Describe defects with observable facts: shape, size, depth, color, density, location, orientation and whether the film remains bonded around the area. Record whether the condition appears before cure, immediately after cure, after masking removal, after assembly or after environmental exposure. Avoid labels such as “outgassing” or “bad pretreatment” until evidence supports the mechanism.

Defect timing narrows the field. A mark visible before coating belongs to substrate acceptance. A crater appearing during flow suggests a different path from a chip created during packaging. The broader explanation of premium surface finishing for die cast parts can help define process interfaces, but the active defect still needs part-specific evidence.

How to Investigate Pinholes and Blisters Without Assuming Outgassing

Pinholes near thick bosses, connected machined surfaces or repeated casting locations can support an outgassing hypothesis. Random defects following fingerprints, rinse flow, racks or one handling station can support contamination. The investigation should compare defect location with wall mass, pore exposure, cleaning path, drying, storage and thermal history.

A representative pre-bake trial may be useful, but it must control other variables. If cleaning chemistry, powder, rack and cure all change at the same time, a better appearance cannot identify the effective correction. Pre-bake temperature and duration must also stay within material and product limits; it is not a universal cure for castings.

Blisters require examination of what remains attached to each side. If coating separates cleanly from a conversion layer, the mechanism differs from a failure within the coating or a fracture that lifts substrate corrosion product. A cross-section, microscopy or appropriate analytical method may be justified for recurrent or high-risk failures.

How Craters and Fisheyes Point to Surface Contamination

Craters form when the liquid film pulls away from a local area. Oil, silicone, lubricant, release agent, adhesive residue, incompatible powder and airborne contamination are possible contributors. The defect shape is suggestive but not exclusive, so the team should review where the part was touched, washed, blown off, masked, racked and stored.

Cleaning records need concentration, temperature, time, rinse condition, bath age and clean-to-coat interval, not just a checked box. Blind holes can retain rinse or detergent. Gloves can transfer contamination. Compressed air can carry oil if the system is not controlled. A conversion treatment described in conversion coating for aluminum die castings still depends on a suitably cleaned surface.

A useful trial compares identified parts before and after one controlled correction. Surface-energy tests, rinse-water checks or analytical methods can add evidence where appropriate, but no single field test proves the absence of all contaminants. The corrective action should address the source, not merely polish visible craters after cure.

What Orange Peel, Poor Flow and Gloss Variation Can Mean

Orange peel describes visible texture, but its acceptability depends on the approved finish master and viewing condition. Causes can include excessive or insufficient film build, substrate texture, powder particle distribution, storage condition, spray settings, under-cure, over-bake or incompatible material. A smooth flat panel is not an adequate comparison for a rough cast surface with ribs and pockets.

Measure dry-film thickness at valid mapped locations and review part-metal cure rather than oven setpoint alone. Compare powder lot, reclaim proportion if controlled by the process, booth environment and application settings. Gloss variation may follow thermal mass, film build or contamination. Color change can result from excessive heat or an incorrect powder lot, but it needs spectrophotometric or approved visual evidence.

The acceptance standard should separate intentional texture from process instability. A textured powder can hide small substrate variations but cannot be used to conceal pits, flash, damage or unapproved rework. Cosmetic zones and observable defect limits should be frozen with representative production-intent parts.

Decorative coating planning helps define color, gloss and texture masters; the defect agreement should then add location-specific limits and reaction rules.

How to Read an Adhesion Failure at the Correct Interface

“Poor adhesion” is incomplete unless the fracture location is identified. Failure can occur between aluminum and pretreatment, within the pretreatment layer, between pretreatment and powder, within the powder film, or between two coating layers after recoat. Each location points to different process questions.

Cross-cut or pull-off methods can be used when specified and suitable for the geometry, but the test procedure, cut condition, tape or fixture, cure age and acceptance level must be controlled. Testing an easy flat may not represent an edge or machined transition where failure occurs.

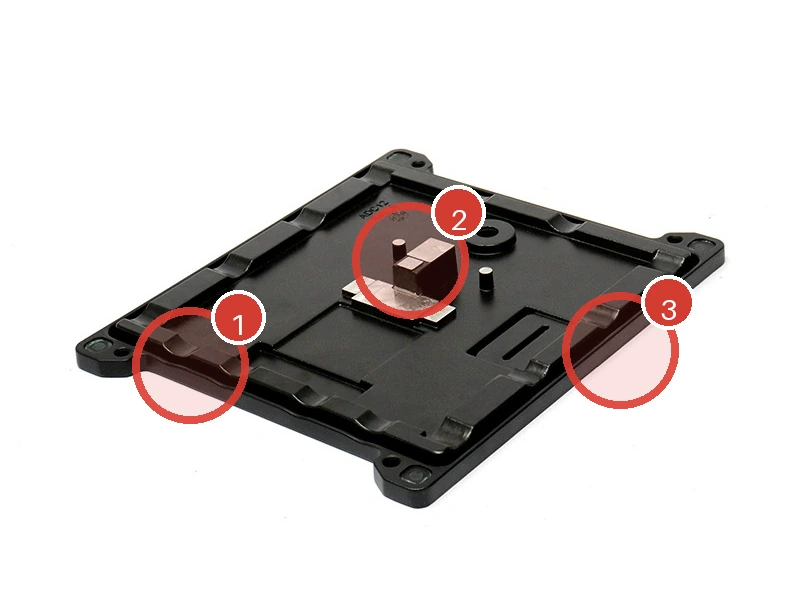

Why Thin Recesses and Exposed Edges Need a Location Map

Deep pockets, close ribs and internal corners can receive less powder because charged particles deposit around the opening. Exposed rims may receive repeated passes and become heavy. Poor or changing ground contact can make distribution unstable. The result is a geometry-dependent map, not one whole-part thickness value.

The investigation should compare rack positions, ground contact, gun angle, voltage strategy, powder flow and part spacing. An inaccessible recess may need visual or section-based qualification if the gauge cannot reach it. A high reading near an edge does not prove adequate film at the sharp edge itself because flow can pull coating away from a small radius.

Adding powder everywhere may worsen outer texture and dimensional buildup without solving the recess. Changes should be trialed with the approved post-process sequence and final-part checks.

What Records Belong in a Powder Coating Defect Investigation?

The investigation package should preserve traceability from casting to final inspection. At minimum, collect part revision, casting lot or source, machining batch, cleaning and pretreatment records, powder lot, rack position, booth and application data, cure chart or part-metal evidence, thickness readings, defect map, photographs and retained samples.

Records should include acceptable controls from the same period. A failed part without a good comparator can show what went wrong but not what variable separated it from stable production. Retain original samples until the disposition and corrective action are verified.

How to Verify That a Corrective Action Really Prevents Recurrence

A corrective action is not complete when one reworked sample looks acceptable. The supplier should define the proposed mechanism, change the control that addresses it and verify representative production-intent lots. The effectiveness check should include the locations and rack positions where the defect originally occurred, not only easy exterior surfaces.

Sample size and observation period should reflect defect frequency and risk. A defect that appeared on half a rack can be challenged quickly; an intermittent defect appearing once in several lots needs a longer verification window. The report should preserve original and corrected defect rates, inspection conditions and any screening applied during the transition.

Corrective action can reveal a second mechanism. If improved cleaning removes random craters but repeated holes remain at a thick boss, the investigation should not force both observations into one cause. Split the populations and continue with the remaining evidence. This prevents a partial improvement from being reported as full closure.

Buyers should also verify that the correction has not introduced new problems. More aggressive cleaning can alter pretreatment; extra heat can change appearance or product condition; lower powder flow can create thin zones; stronger blasting can change roughness and dimensions. Effectiveness therefore includes defect prevention, coating-system compliance and final-part function.

Closure records should identify the owner, implementation date, affected work instructions and audit point. Training alone is not a durable correction when the process also needs a gauge, bath limit, rack-cleaning interval or drawing change. The next internal audit should be able to reconstruct why the control exists and show that production still follows it. This converts one defect investigation into retained manufacturing knowledge.

Trend data should remain available for later supplier and repeat-order reviews.

How to Choose Use-As-Is, Local Repair, Recoat, Strip or Scrap

Disposition starts with function and mechanism. Use-as-is requires documented acceptance that the defect remains inside the approved zone standard and does not affect protection or assembly. Local repair requires a compatible approved system and sound surrounding coating. Recoat requires total-film, intercoat adhesion, cure and fit review. Stripping requires proof that the removal method will not attack dimensions or leave residue in pores. Scrap is appropriate when traceable function cannot be restored.

Do not recoat a contaminated or under-cured first layer merely to improve appearance. The second layer can conceal evidence while adding heat and buildup. A repair should be linked to corrective action when the defect is recurrent. The purpose is to deliver an acceptable part and prevent recurrence, not maximize the number of recoverable pieces.

Hypothetical Investigation: Repeated Pinholes Near a Heavy Boss

Consider a hypothetical black coated housing with pinholes clustered near one heavy mounting boss while large exterior flats remain acceptable. The team contains the coating lot and maps defects by part, rack and casting lot. It compares the boss wall mass, machined connections, cleaning drainage and cure response with unaffected locations.

Representative parts are divided into controlled groups: the approved baseline, a revised drying condition and a separately reviewed pre-bake condition. Powder, rack and cure remain constant. The investigation records defect count by zone, part-metal temperature and cross-sections from selected samples. A clean test panel confirms powder flow and cure but is not treated as proof for the casting.

If one change reduces defects, the team still verifies that it did not alter alloy condition, dimensions, adhesion or finish. This scenario demonstrates a test structure. It does not claim the pictured components have pinholes, that pre-baking is the answer or that Neway achieved a stated result.

What to Include in a Coating-Defect Quality Agreement

Buyers should provide controlled drawings, surface-zone classes, finish masters, allowable defect definitions, viewing conditions, film-thickness map, adhesion or performance methods, mask boundaries, lot-traceability needs, sampling, containment rules and disposition authority. The RFQ should also identify casting route, alloy, machined areas, expected quantity and service exposure.

Because coating performance begins with the casting, the quality plan should connect aluminum die casting acceptance to the coating route. However, coating cannot be used as evidence that internal casting quality is acceptable, and a casting pore does not automatically explain every surface defect.

An effective defect agreement makes observations reproducible and root-cause claims testable. It lets the buyer protect function while the supplier investigates the relevant process layer, and it prevents an attractive reworked surface from replacing the evidence needed for stable repeat production.

Production validation must cover representative lots.

FAQ

1. How Can Buyers Tell Outgassing Pinholes From Surface Contamination Craters?

2. Why Can Powder Coating Adhesion Fail Only Around Machined Areas?

3. What Records Are Needed to Investigate a Batch of Blistered Die Cast Parts?

4. When Is Stripping and Recoating Safer Than Applying a Second Powder Layer?

5. How Should Cosmetic Defect Zones Be Graded on a Powder-Coated Casting?
