How Aluminum Pressure Die Casting Supports Stable Production Parts
How Aluminum Pressure Die Casting Supports Stable Production Parts

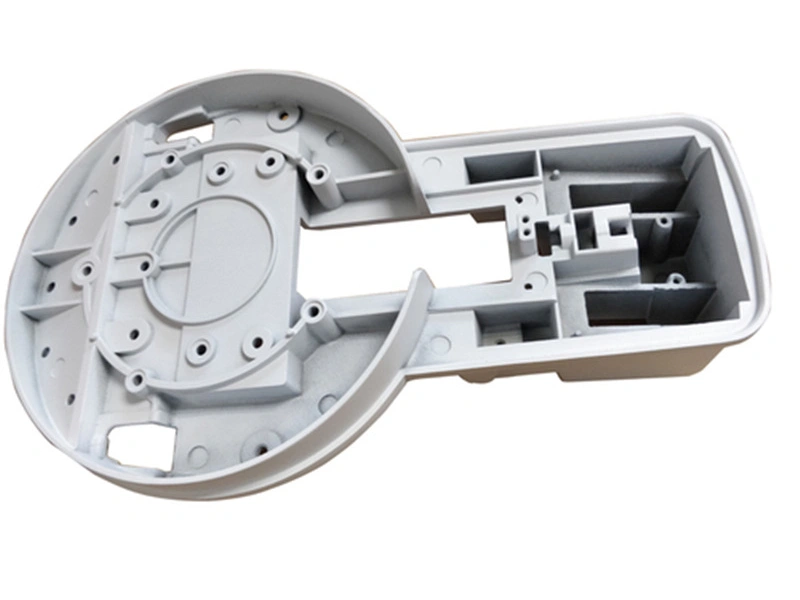

Aluminum pressure die casting helps buyers produce lightweight, complex and repeatable aluminum parts for stable production. It is commonly used when a project needs custom geometry, medium to high-volume production, controlled dimensions, local CNC machining and surface finishing.
For buyers, aluminum pressure die casting is not only a forming process. It is a production route that connects part design, tooling, casting quality, CNC machining, surface finishing, trial samples, inspection and repeat orders.
A successful project should confirm part function, design risks, tooling strategy, machined features, cosmetic surfaces, surface finish standards and batch validation before mass production starts. If these details are not reviewed early, buyers may face sample failure, mold modification, machining disputes, cosmetic rejection and unstable production quality.
Why Buyers Use Aluminum Pressure Die Casting for Production Parts
Buyers use aluminum pressure die casting because it can form complex aluminum parts with stable repeatability. Compared with fully machining every feature from solid aluminum, pressure die casting can form the main structure efficiently and leave only key functional areas for post machining.
This makes the process suitable for aluminum housings, lighting housings, heat sink housings, electronic enclosures, motor covers, pump bodies, mounting brackets, automotive aluminum parts, industrial covers and custom aluminum die cast parts.
For production projects, aluminum pressure die casting helps buyers balance lightweight structure, production cost, tooling investment, surface appearance and long-term supply stability.
Buyer Goal | How Aluminum Pressure Die Casting Helps | Planning Point |
|---|---|---|
Complex structure | Forms ribs, bosses, housings, covers and mounting features | Complete DFM review before tooling |
Lightweight design | Uses aluminum alloy with optimized part geometry | Control wall thickness and structural support |
Medium to high-volume production | Uses tooling for repeat production | Confirm annual demand before mold investment |
Stable dimensions | Production tooling supports repeatable part geometry | Validate trial samples and small batches |
Lower full CNC machining workload | Casts the main shape and machines only functional areas | Define machined features early |
Finished appearance | Can support deburring, polishing, painting and coating | Confirm cosmetic surfaces before tooling |
Which Aluminum Parts Fit Pressure Die Casting?
Aluminum parts are suitable for pressure die casting when they have complex geometry, ribs, bosses, mounting features, lightweight requirements, stable annual demand and local functional areas that need CNC machining.
The process is especially suitable when the design is mostly frozen and the buyer needs repeat production instead of only a few test samples. It is also useful when the part requires painting, powder coating, polishing or other surface finishing after casting.
Aluminum pressure die casting may not be the best first step when the project only needs a few samples, the design is changing frequently, all surfaces require high-precision machining, annual demand cannot support tooling, or material, surface finish and assembly requirements are still unclear.
Project Condition | Pressure Die Casting Suitability | Buyer Decision Point |
|---|---|---|
Complex structure | Suitable | Use DFM review to check ribs, bosses and wall thickness |
Stable repeat production | Suitable | Confirm annual demand and order plan |
Lightweight aluminum part | Suitable | Balance weight reduction and casting stability |
Partial functional machining | Suitable | Plan machining allowance before tooling |
Visible surface or coating requirement | Suitable with early planning | Confirm cosmetic surfaces and finishing standard |
Only a few samples | Usually not suitable | Prototype machining may be more practical first |
Design changes frequently | Not ready | Freeze key design before tooling |
All surfaces need high-precision machining | Needs review | Full CNC machining may be more suitable |
How Pressure Die Casting Helps Balance Cost and Production Stability
Aluminum pressure die casting helps buyers balance cost and production stability when the project has repeat demand. Tooling creates an upfront cost, but it can support faster production and lower long-term unit cost when the volume is suitable.
The process can form complex aluminum geometry, reduce full CNC machining workload and support consistent batch production. However, the cost advantage depends on proper design review, tooling quality, machining planning, surface finish control and production validation.
Buyers should compare total manufacturing cost instead of only the first quote. Tooling cost, unit cost, CNC machining cost, finishing cost, inspection cost, scrap risk and long-term production stability should be reviewed together.
Buyer Goal | How Aluminum Pressure Die Casting Helps | Key Planning Point |
|---|---|---|
Lower long-term unit cost | Uses tooling for repeat production | Confirm annual demand |
Complex part geometry | Forms ribs, bosses and housings | Complete DFM review |
Lightweight structure | Uses aluminum alloy with optimized design | Control wall thickness |
Functional accuracy | Combines casting with CNC machining | Define machined features |
Better appearance | Supports surface finishing | Confirm cosmetic surfaces |
Stable batch production | Repeats parts from production tooling | Validate trial samples |
How Part Design Affects Aluminum Pressure Die Casting Quality
Part design directly affects aluminum pressure die casting quality. Before tooling begins, buyers should review wall thickness, rib design, boss structure, draft angle, corner radius, mounting holes, sealing faces, cosmetic surfaces, datum surfaces and machining allowance.
If the design is not suitable for pressure die casting, the part may have incomplete filling, shrinkage, porosity, warpage, flash, burrs, machining difficulty, surface finishing problems or assembly issues.
A strong DFM review helps buyers adjust the design before mold making. The goal is not to remove custom features, but to make those features easier to cast, machine, finish and inspect consistently.
Design Feature | Why It Matters | Risk if Ignored |
|---|---|---|
Wall thickness | Affects filling, cooling, shrinkage and strength | Porosity, warpage and weak areas |
Rib design | Improves stiffness without making the whole part heavy | Poor flow, local shrinkage or filling issues |
Boss structure | Supports screws, inserts and mounting points | Thick hot spots and local shrinkage |
Draft angle | Helps the part release from the mold | Drag marks, sticking and ejection problems |
Corner radius | Improves metal flow and reduces stress concentration | Cold shuts, cracks or weak corners |
Mounting holes | Affect assembly and CNC machining strategy | Poor fit and higher machining cost |
Sealing faces | Need flatness and surface control | Leakage risk and inspection failure |
Cosmetic surfaces | Affect gate, ejector and parting line planning | Visible marks and finishing rejection |
Datum surfaces | Control machining and inspection reference | Unstable dimensions and assembly variation |
Machining allowance | Leaves stock for post machining | Scrap, rework or poor final tolerance |
How Tooling Controls Aluminum Pressure Die Casting Results
Tooling is the core of aluminum pressure die casting. The mold controls filling stability, gate position, runner balance, venting, cooling, ejector pin marks, parting line location, machining allowance, cosmetic surface protection and batch repeatability.
Buyers should not compare tooling price only. A lower tooling price may create higher total cost if the mold causes poor trial samples, unstable dimensions, high scrap rate, surface defects, CNC machining problems or repeated maintenance.
For tooling for aluminum pressure die casting, buyers should review whether the tooling plan can support trial samples, CNC machining, surface finishing and long-term production orders.
Tooling Area | How It Controls the Result | Buyer Risk if Weak |
|---|---|---|
Gate position | Controls aluminum entry direction and flow behavior | Flow marks, cold shuts and weak filling |
Runner balance | Supports stable flow into the cavity | Uneven filling and batch variation |
Venting | Helps trapped gas escape during casting | Porosity and internal defects |
Cooling | Controls solidification, shrinkage and cycle time | Warpage and unstable dimensions |
Ejector pin marks | Affect part release and visible surface quality | Marks on cosmetic or functional surfaces |
Parting line location | Affects flash, burrs and visible surfaces | Extra finishing and cosmetic disputes |
Machining allowance | Leaves material for holes, faces and datums | Insufficient stock and machining rework |
Cosmetic surface protection | Protects visible faces from gate, ejector and parting line issues | Appearance rejection after finishing |
Batch repeatability | Supports stable quality across repeat orders | Quality drift and unstable supply |
How CNC Machining Should Be Planned After Aluminum Pressure Die Casting
Aluminum pressure die casting can form complex structures, but key functional areas often still need CNC machining after aluminum pressure die casting. Buyers should plan machining before tooling, not after samples are already made.
Common machined areas include threaded holes, mounting holes, sealing faces, bearing holes, locating surfaces, datum surfaces, flatness-controlled faces and tight tolerance assembly areas.
Buyers should separate as-cast surfaces, machined surfaces, cosmetic surfaces, functional surfaces, coating areas and assembly datum surfaces before tooling starts. This helps reduce machining scope changes, quotation changes, fixture problems and assembly disputes.
Surface or Feature Type | How Buyers Should Define It | Why It Matters |
|---|---|---|
Threaded holes | Confirm thread size, depth, position and inspection method | Improves fastening reliability |
Mounting holes | Confirm which holes need CNC machining | Improves assembly fit |
Sealing faces | Define flatness and surface finish requirements | Reduces leakage risk |
Bearing holes | Confirm diameter, roundness and tolerance requirements | Improves movement and fit performance |
Locating surfaces | Mark positioning areas clearly on the drawing | Improves repeatable assembly |
Datum surfaces | Define datums for machining and inspection | Improves dimensional control |
Flatness-controlled faces | Apply flatness only where function requires it | Controls machining and inspection cost |
As-cast surfaces | Keep non-functional areas as-cast when possible | Reduces unnecessary machining cost |
Cosmetic surfaces | Protect visible faces from machining and tooling defects | Improves final appearance |
Coating areas | Confirm coating coverage, masking and thickness | Prevents fit and appearance problems |
Assembly datum surfaces | Define inspection and assembly reference surfaces | Improves repeatable fit and quality control |
How Surface Finishing Should Be Planned for Aluminum Pressure Die Casting
Surface finishing should be planned early for aluminum pressure die casting parts. Common finishing processes include deburring, polishing, painting, powder coating, protective coating and clear coating.
Buyers should confirm visible surfaces, non-visible surfaces, functional surfaces, coating type, color requirement, surface roughness, masking areas, acceptable defect standard and packaging protection before production starts.
For appearance parts, surface finishing cannot wait until mass production. Parting lines, ejector pin marks, gate removal areas, porosity and burrs can all affect final appearance, coating quality and buyer acceptance.
Surface Finishing Item | What Buyers Should Confirm | Why It Matters |
|---|---|---|
Deburring | Edges, holes, parting lines and handling areas | Improves assembly and safe handling |
Polishing | Visible surfaces and smoothness expectations | Improves appearance and hand feel |
Painting | Color, coverage and acceptable surface defects | Improves product appearance consistency |
Powder coating | Coating area, thickness and working environment | Improves durability and corrosion resistance |
Protective coating | Protection level and use environment | Improves service life |
Clear coating | Base appearance and protection requirement | Protects visible aluminum surfaces |
Visible surfaces | Appearance-critical faces that need controlled finish | Reduces cosmetic rejection |
Non-visible surfaces | Hidden areas that may not need premium finish | Controls unnecessary finishing cost |
Functional surfaces | Contact, sealing, mounting or assembly areas | Prevents finishing from affecting function |
Masking areas | Threads, sealing faces, contact areas and precision features | Prevents fit problems after coating |
Packaging protection | Protection against scratches, dents and coating damage | Maintains finished quality during delivery |
How Trial Samples Validate Aluminum Pressure Die Casting Projects
Trial samples should validate whether aluminum pressure die casting can meet custom production requirements. Buyers should not approve samples only by appearance. They should check dimensions, assembly, machining, surface finish and inspection evidence.
Important sample checks include critical dimensions, wall thickness stability, assembly fit, CNC machined features, threaded holes, sealing faces, burr and flash level, surface finish result, coating or painting quality, cosmetic surface standard and inspection report format.
After trial samples are approved, small batch validation should confirm whether the same dimensions, appearance, machining quality and surface finish can be repeated before full production orders begin.
Trial Sample Check | What Buyers Should Validate | Why It Matters |
|---|---|---|
Critical dimensions | Dimensions that affect fit, function and final inspection | Confirms tooling and process accuracy |
Wall thickness stability | Thin areas, thick areas, ribs and bosses | Confirms design and casting stability |
Assembly fit | Fit with mating components and final installation condition | Reduces production assembly risk |
CNC machined features | Holes, faces, datums and tight tolerance features | Confirms machining quality |
Threaded holes | Thread depth, pitch, position and cleanliness | Improves fastening reliability |
Sealing faces | Flatness, surface finish and visible defects | Reduces leakage risk |
Burr and flash level | Edges, holes, parting lines and handling areas | Improves assembly and safe handling |
Surface finish result | Polishing, painting, powder coating or protective coating quality | Confirms appearance standard |
Cosmetic surface standard | Visible marks, scratches, pits, pores and ejector marks | Creates a clear appearance approval reference |
Inspection report format | Dimensional data, cosmetic checks and functional inspection records | Creates clear approval evidence |
How Buyers Should Choose an Aluminum Pressure Die Casting Supplier
Buyers should choose an aluminum pressure die casting supplier based on total production capability, not only casting price. A suitable supplier should support DFM review, tool and die making, trial samples, CNC machining, surface finishing, dimensional inspection, batch consistency, design change management and repeat production.
A strong supplier should understand how part design affects tooling, how tooling affects casting quality, how casting quality affects CNC machining and how surface finishing depends on the original casting surface.
Neway supports aluminum pressure die casting projects that require aluminum die casting, aluminum die casting tooling, CNC machining after die casting, surface finishing, trial samples and repeat production. Buyers comparing other production routes can also review custom metal casting, precision zinc die cast parts or custom copper die cast parts based on part size, function, surface requirement and production cost.
Supplier Capability | What Buyers Should Check | Why It Matters |
|---|---|---|
Aluminum die casting DFM review | Can the supplier review wall thickness, ribs, bosses and draft before tooling? | Reduces mold changes and sample failure |
Tool and die making | Can the supplier support tooling design, correction and maintenance? | Improves production repeatability |
Trial samples | Can the supplier validate dimensions, machining and finishing before production? | Confirms production readiness |
CNC machining support | Can the supplier machine holes, threads, faces and datums after casting? | Improves final fit and function |
Surface finishing management | Can the supplier manage polishing, painting, coating and appearance standards? | Reduces cosmetic disputes |
Dimensional inspection | Can the supplier inspect critical dimensions and machined areas? | Reduces batch quality disputes |
Batch consistency | Can the supplier maintain stable quality across repeat orders? | Improves long-term supply stability |
Design change management | Can the supplier evaluate how design changes affect tooling and cost? | Controls modification risk |
Repeat production support | Can the supplier support tooling maintenance, quality tracking and delivery? | Supports long-term cooperation |
Cost reduction advice | Can the supplier optimize machining scope, surface finish and design details? | Controls total production cost |
