Die Cast Tooling Guide for Custom Metal Parts from Prototype to Mass Production
Die Cast Tooling Guide for Custom Metal Parts from Prototype to Mass Production

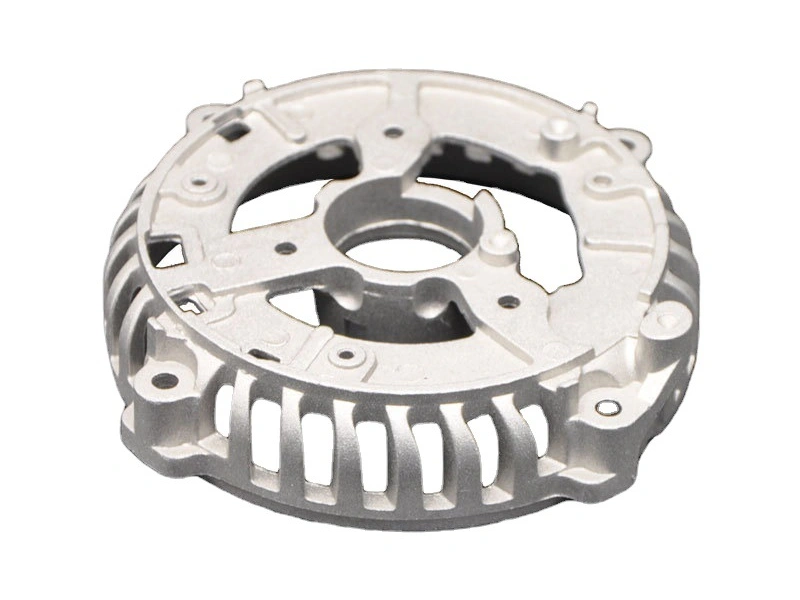

Buyers usually start asking about die cast tooling when a custom metal part is ready to move from design review or prototype validation into repeatable production. Tooling is not just a mold cavity. It directly affects dimensional stability, surface quality, casting defects, cycle time, mold life, machining allowance, production consistency, and final unit cost.
In a custom die casting project, tooling quality can decide whether a part moves smoothly into production or creates repeated mold modification, sampling failure, flash, porosity, shrinkage, warpage, poor surface finish, and delayed delivery. This is why buyers should evaluate tooling strategy before focusing only on the lowest casting unit price.
A good die cast tooling plan should connect part design, material selection, mold material, gate and runner design, cooling, venting, ejector layout, inserts, sliders, trial production, CNC post machining, surface finishing, inspection, and mass production requirements. When these factors are planned early, buyers can reduce tooling risk and improve long-term production stability.
What Is Die Cast Tooling?
Die cast tooling is the mold system used to produce custom metal parts through high-pressure die casting, aluminum die casting, zinc die casting, or copper alloy die casting. It shapes molten metal into the required geometry and controls how the part fills, cools, ejects, and repeats across production cycles.
A die casting mold is more than a simple cavity. It may include cavities, cores, gates, runners, overflow areas, vents, cooling channels, ejector pins, sliders, lifters, inserts, parting lines, and wear-resistant components. Each detail affects part quality, tooling life, production speed, and downstream machining or finishing requirements.
Buyers can review metal casting service options together with tooling requirements because the mold must match the casting material, part structure, production quantity, surface finish, and tolerance goals. For tooling material selection, how to choose tool and die materials is also important before tooling investment begins.
Tooling Element | Function in Die Casting | Buyer Impact |
|---|---|---|
Mold cavity | Forms the main part geometry | Affects shape accuracy and surface quality |
Gate and runner system | Controls molten metal flow into the cavity | Affects filling, porosity, cold shuts, and cycle stability |
Venting system | Allows trapped air and gas to escape | Reduces porosity and gas-related defects |
Cooling system | Controls mold temperature and solidification | Improves cycle time, shrinkage control, and dimensional stability |
Ejector system | Removes the part from the mold | Reduces sticking, deformation, and ejector marks |
Slides and inserts | Form undercuts, side holes, or local complex features | Supports complex designs but increases tooling cost and maintenance |
Why Die Cast Tooling Matters for Cost, Quality, and Lead Time
Die cast tooling matters because the mold controls how consistently each part can be produced. Poor tooling design can cause unstable filling, trapped gas, shrinkage, flash, surface defects, warpage, dimensional variation, short die life, and repeated trial corrections. These problems increase total project cost even when the initial mold quotation looks low.
Buyers should not judge tooling only by the lowest upfront price. A cheap mold can become expensive if it causes sampling failure, mold repair, production downtime, batch rejection, unstable dimensions, or delayed delivery. A well-designed mold supports stable cycle time, better surface quality, controlled defects, and more predictable production output.
Tooling also affects mass production cost. When the mold runs consistently, unit cost becomes easier to control. Buyers can review metal casting project cost calculation and cost-effective mass production in metal die casting to understand how tooling, material, cycle time, defect rate, and production quantity affect the final cost. For stable demand, mass production planning should be connected with tooling decisions from the beginning.
Tooling Factor | What It Affects | Risk if Poorly Controlled |
|---|---|---|
Gate and runner design | Metal flow and filling quality | Cold shuts, porosity, short shots, and uneven filling |
Cooling design | Cycle time and solidification | Warpage, shrinkage, hot spots, and long cycle time |
Venting design | Gas escape during filling | Porosity, trapped gas, and internal defects |
Ejector layout | Part release from the mold | Deformation, marks, sticking, and production interruption |
Mold material | Thermal fatigue, wear resistance, and die life | Cracking, erosion, high maintenance, and short mold life |
Machining allowance design | Post-machined features and final tolerance control | Insufficient stock, rework, or unstable machined dimensions |
Which Tool Materials Are Used for Die Cast Tooling?
Tool material selection affects mold life, thermal fatigue resistance, wear resistance, cooling behavior, repair frequency, and total production cost. Buyers should choose tool material according to casting alloy, production quantity, part complexity, mold temperature, expected die life, and local wear conditions.
H13 tool steel is commonly used for high-temperature and high-pressure die casting tools, especially aluminum die casting molds. P20 steel may be suitable for some lower-volume, prototype, or less demanding tooling situations. D2 steel can be used for wear-resistant components, cutting-related positions, or local high-wear areas.
A2 steel can support tooling components that need dimensional stability and wear resistance. Beryllium copper inserts are often used where rapid heat transfer and local cooling are important. S7 tool steel may be considered for areas with impact loading, while tungsten carbide can be considered for extremely wear-resistant local tooling components.
Tool Material | Typical Tooling Value | Common Buyer Use Case |
|---|---|---|
H13 tool steel | High hot strength and thermal fatigue resistance | Aluminum die casting molds and production tooling |
P20 steel | Useful for lower-volume or prototype tooling situations | Trial tools, low-volume tools, or less demanding molds |
D2 steel | High wear resistance | Wear-prone tooling parts and cutting-related components |
A2 steel | Dimensional stability and wear resistance | Selected tooling inserts and precision mold components |
Beryllium copper | Fast heat transfer and local cooling performance | Inserts near hot spots or areas needing faster cooling |
S7 tool steel | Impact resistance | Tooling areas exposed to shock or repeated impact |
Tungsten carbide | Very high wear resistance | Local tooling parts with extreme wear requirements |
How Die Cast Tooling Differs for Aluminum, Zinc, and Copper Alloys
Die cast tooling must match the casting material. Aluminum, zinc, and copper alloys behave differently during melting, filling, cooling, solidification, and ejection. This means tooling material, cooling design, venting, gate design, and expected die life should be planned according to the alloy family.
Aluminum die casting tooling usually needs strong resistance to heat checking, thermal fatigue, and high-temperature cycling. Cooling design and die material selection are important because aluminum casting temperatures and production demands can create mold wear over time.
Zinc die casting tooling usually operates at lower temperatures than aluminum tooling. It is often used for small, precise, detailed components and can support long mold life when the tool is designed and maintained properly. Copper die casting tooling faces higher thermal and wear challenges, so mold material, inserts, heat management, and tool protection become more important.
Buyers can compare casting materials before confirming tooling strategy because material choice directly affects mold cost, die life, maintenance frequency, and production stability.
Casting Material | Tooling Challenge | Buyer Consideration |
|---|---|---|
Aluminum die casting | Higher temperature, thermal fatigue, heat checking, cooling control | Use suitable tool steel, cooling design, and maintenance planning |
Zinc die casting | High precision, fine detail, long repeat production | Focus on cavity precision, surface quality, and stable small-part output |
Copper die casting | Higher thermal and wear stress on tooling | Review tool material, heat management, inserts, and protection strategy carefully |
What Factors Affect Die Cast Tooling Cost?
Die cast tooling cost is affected by part size, cavity count, mold material, part complexity, sliders, inserts, surface requirements, cooling system, venting design, expected production volume, trial mold requirements, post-machining allowance, and required mold life. A simple part with one cavity and lower production demand will not have the same tooling cost as a complex multi-cavity production mold.
Buyers should provide more than a 3D file when requesting a tooling quote. The supplier also needs to know material, expected annual volume, tolerance requirements, surface finish, critical machined areas, production life target, sample requirements, and whether the project will move into low volume or mass production. Without this information, the tooling cost estimate may be incomplete.
For project cost planning, buyers can use metal casting project cost calculation and cost-effective metal casting process selection to compare tooling investment with part cost, machining cost, finishing cost, and expected production quantity. If the design is not ready for full tooling investment, low volume manufacturing may help reduce early risk before moving into mass production.
Tooling Cost Factor | Why It Affects Cost | Buyer Action Before Quotation |
|---|---|---|
Part size | Larger molds require more material, machining, and handling | Confirm final part envelope and expected production volume |
Cavity count | More cavities increase mold complexity but can reduce unit cost | Balance tooling budget with production demand |
Tool material | Higher-performance tool steel increases upfront cost but may extend mold life | Select material based on alloy and production target |
Sliders and inserts | Complex features increase design, machining, and maintenance needs | Simplify undercuts where possible |
Cooling and venting | Better thermal and gas control improves stability but adds design work | Plan defect control before tool build |
Surface requirements | Cosmetic surfaces require better cavity finish and process control | Define visible and non-visible areas early |
Production life target | Long-term mass production requires stronger tooling strategy | Share expected annual and lifetime volume |
How Tooling Design Reduces Die Casting Defects
Good tooling design reduces die casting defects by controlling metal flow, air escape, cooling rate, part release, and dimensional stability. Many casting problems are not caused only by the material or machine. They can come from poor gate location, weak venting, uneven cooling, difficult ejection, sharp corners, poor wall thickness design, or insufficient mold flow analysis.
Common defects affected by tooling design include porosity, shrinkage, cold shuts, flash, warpage, ejector marks, surface defects, dimensional variation, insufficient filling, and trapped gas. Proper gate and runner design help the metal fill smoothly. Venting helps trapped gas escape. Cooling design helps reduce hot spots and shrinkage. Ejector layout helps reduce deformation and marks.
Buyers can use mold flow analysis for better die casting precision to identify filling and defect risks before mold production. Good tooling design also depends on optimized component design for manufacturability and strong engineering support. Buyers can also review typical defects in metal casting projects before approving tooling.
Tooling Design Area | Defect Risk Reduced | Why It Matters |
|---|---|---|
Gate and runner design | Cold shuts, short shots, turbulence, uneven filling | Improves metal flow and filling stability |
Venting design | Porosity and trapped gas | Allows air and gas to escape during filling |
Cooling design | Shrinkage, hot spots, warpage, long cycle time | Improves solidification and dimensional stability |
Ejector layout | Ejector marks, sticking, deformation | Supports stable part release from the mold |
Draft angle and wall thickness planning | Sticking, shrinkage, filling problems, stress concentration | Improves castability and reduces tooling correction |
How Surface Treatments Extend Die Cast Tool Life
Die cast tooling and inserts can use surface treatments to improve wear resistance, heat fatigue resistance, corrosion resistance, release performance, and surface stability. The right treatment depends on casting alloy, mold area, temperature, wear condition, production volume, and maintenance strategy.
Nitriding for casting tools can improve surface hardness and durability. PVD coating for die casting tools and dies can improve wear and surface protection in selected tooling areas. Hard coating for die casting tools and molds may help extend tool performance under demanding conditions.
Shot peening for die casting tools and dies can help improve fatigue resistance, while polishing for casting dies can improve cavity surface quality, part release, and finished part appearance.
Tool Surface Treatment | Main Purpose | Tooling Benefit |
|---|---|---|
Nitriding | Improve surface hardness and wear resistance | Enhances durability in repeated casting cycles |
PVD coating | Improve surface protection and wear behavior | Supports longer life for selected tooling areas |
Hard coating | Increase surface resistance under demanding conditions | Reduces local wear and surface degradation |
Shot peening | Improve fatigue resistance | Helps tooling withstand repeated stress |
Polishing | Improve mold cavity finish and release behavior | Improves part surface quality and reduces sticking |
Prototype Tooling vs Production Tooling
Prototype tooling and production tooling serve different purposes. Prototype tooling is usually used when buyers need design validation, sample approval, low-volume trial production, or risk reduction before committing to a full production mold. It helps verify structure, material, surface finish, machining requirements, and inspection standards.
Production tooling is used when the design is stable, order demand is clear, and long-term batch consistency is required. It usually needs stronger tooling material, better cooling, more reliable dimensional control, longer mold life, and higher production efficiency. Production tooling may cost more upfront, but it can reduce long-term unit cost when volume increases.
If the design is not frozen, buyers should consider rapid prototyping, prototype validation, or low volume manufacturing before investing in full production tooling. The blog on rapid prototyping service for precise metal casting parts can help buyers plan the early validation stage before moving toward mass production.
Tooling Type | Best Used When | Buyer Benefit |
|---|---|---|
Prototype tooling | Design still needs validation or customer approval | Reduces risk before full production investment |
Prototype tooling | Small trial batches or early testing are needed | Helps verify part function, finish, and manufacturability |
Production tooling | Design is frozen and order demand is stable | Supports repeatable quality and efficient production |
Production tooling | Long-term mass production is planned | Spreads tooling cost across more parts and lowers average unit cost |
How to Choose a Die Cast Tooling Supplier
Choosing a die cast tooling supplier should not be based only on the lowest mold price. Buyers should check whether the supplier can support DFM analysis, tool and die making, material selection, mold flow analysis, trial mold correction, aluminum, zinc, and copper die casting requirements, CNC post machining, surface finishing, inspection, and production scaling.
Early design support and engineering review help identify tooling risks before mold manufacturing begins. If a part has complex geometry, critical tolerances, machined areas, cosmetic surfaces, or production volume requirements, the tooling supplier should help buyers review those requirements before quoting and building the mold.
Many projects also require CNC machining and post processing after casting. A supplier with one-stop manufacturing service can coordinate tooling, casting, machining, finishing, inspection, and production delivery more efficiently than separate suppliers working independently.
Supplier Capability | Why Buyers Should Check It | What It Helps Prevent |
|---|---|---|
DFM analysis | Tooling problems should be found before mold build | Mold modification and sampling failure |
Tool and die making | Tooling quality controls production stability | Flash, defects, poor dimensions, and short mold life |
Material recommendation | Tool material must match alloy, volume, and thermal conditions | Wrong mold material and premature wear |
Mold flow and engineering support | Filling, cooling, venting, and defect risks need early review | Porosity, shrinkage, trapped gas, and warpage |
CNC machining and post processing | Many cast parts need secondary operations | Supplier coordination gaps and rework |
Prototype to mass production support | Projects often need validation before scaling | Risky transition from sample to production |
Neway supports die cast tooling projects that require design review, engineering support, tool and die making, aluminum die casting, zinc die casting, copper die casting, CNC machining, post processing, prototype validation, low volume manufacturing, and mass production. For buyers sourcing custom die casting tooling, an integrated supplier can help reduce tooling risk and support stable production from prototype to mass production.
