How to Source Zinc Die Cast Components for Reliable Product Assembly

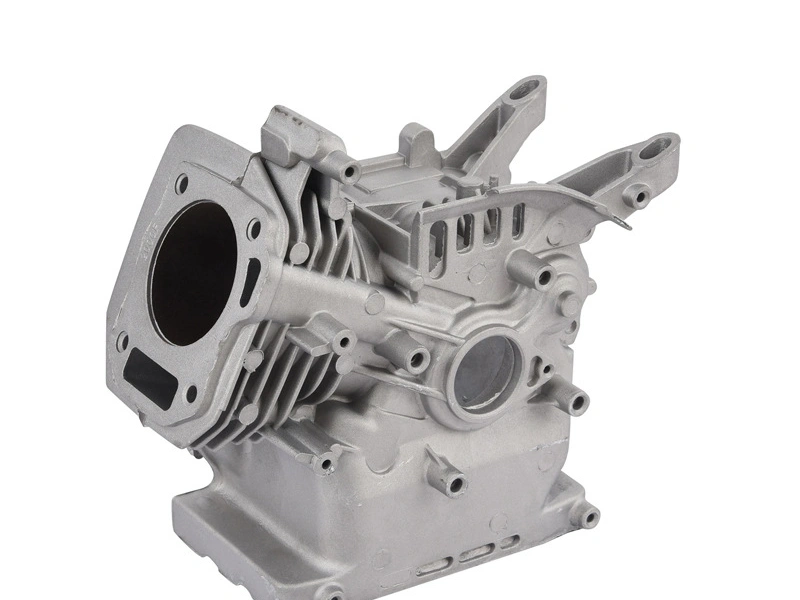

Zinc die cast components are often used in products that require small metal parts with fine details, stable dimensions, decorative surfaces, functional holes, threaded features, hinges, covers, hardware structures, or assembly-ready performance. For buyers, these components are usually not simple casting blanks. They are parts that must enter a finished product, pass functional checks, and remain consistent in repeat orders.
When sourcing zinc die cast components, buyers should think beyond basic casting. A successful project needs clear RFQ information, suitable zinc alloy selection, controlled tooling design, visible surface planning, CNC post-machining, surface finishing, functional testing, protective packaging, and stable mass production support.
This article explains how buyers can prepare zinc die cast component projects from drawing review to finished component delivery, so the final parts are suitable for reliable product assembly instead of only meeting basic casting requirements.
Why Zinc Die Cast Components Need More Than Basic Casting
Buyers searching for zinc die cast components usually need parts that will be used directly in final products. These parts may have visible cosmetic surfaces, threaded holes, hinge structures, positioning features, plated surfaces, coated faces, movement areas, or protected packaging requirements.
Because of this, a zinc die cast component project should be planned as a finished component workflow. Casting is only one step. The supplier must also consider how the part will be machined, finished, tested, assembled, packed, and repeated in future production batches.
Component Requirement | Why Basic Casting Is Not Enough | Planning Needed |
|---|---|---|
Visible surface | Parting lines, ejector marks, gate marks, scratches, and coating defects may affect product value. | Cosmetic face definition, tooling layout, finishing plan, golden sample, and packaging protection. |
Functional holes or threads | As-cast features may not meet fastening, locating, or movement requirements. | CNC machining, tapping, thread gauge inspection, and assembly testing. |
Coated or plated surfaces | Surface treatment thickness can change fit and expose base casting defects. | Finish thickness planning, masking, surface preparation, and inspection standards. |
Assembly-ready delivery | The component must fit with screws, pins, plastic parts, springs, seals, or electronic parts. | Trial assembly, burr control, functional testing, and ready-to-use packaging. |
Repeat production | One good sample does not guarantee long-term batch consistency. | Tooling maintenance, process records, inspection plans, and mass production control. |
For finished zinc die cast components, buyers should evaluate the complete supplier workflow instead of only asking whether the factory can cast zinc alloy parts.
What Buyers Should Provide Before Quoting Zinc Die Cast Components
A clear quotation starts with clear project information. If buyers only send a simple picture or incomplete drawing, suppliers may quote the part incorrectly or miss important risks related to tooling, finishing, machining, inspection, and packaging.
Before requesting a quote for custom zinc die cast components, buyers should provide the 3D model, 2D drawing, annual quantity, surface finish requirement, assembly requirement, application environment, and packaging expectation whenever possible.
Buyer Information | Why It Matters | Supplier Use |
|---|---|---|
3D model | Shows the full structure, undercuts, wall thickness, and complex features. | Used for DFM review, tooling feasibility, and casting process evaluation. |
2D drawing | Defines critical dimensions, tolerances, threads, datums, and inspection points. | Used for quotation, machining planning, and quality inspection standards. |
Annual quantity | Determines whether the project needs prototype tooling, single-cavity tooling, or multi-cavity tooling. | Used for tooling strategy, cost planning, and production capacity evaluation. |
Surface finish requirement | Finishing affects appearance, coating thickness, corrosion protection, and cost. | Used to choose painting, powder coating, tumbling, sand blasting, decorative coating, or other post-processes. |
Assembly requirement | Defines how the component fits with other parts. | Used for CNC machining, burr control, trial assembly, and functional testing planning. |
Application environment | Working conditions affect alloy choice and surface protection. | Used for zinc alloy selection, coating selection, and durability planning. |
Packaging requirement | Finished components can be scratched, dented, or damaged during transport. | Used for protective packaging, separation, labeling, and delivery planning. |
Complete RFQ information helps the supplier quote the project as a finished zinc die cast component instead of an unfinished casting blank. This reduces misunderstanding and makes the quotation more useful for real production decisions.
Material Planning for Zinc Die Cast Components
Material planning for zinc die cast components should start from the component’s final use. Buyers should not select the lowest material cost without considering strength, hardness, surface finish, coating behavior, assembly method, wear resistance, or the working environment.
Common zinc alloys for die cast components include Zamak 3, Zamak 5, Zamak 7, ZA-8, and Zamak 2. The best choice depends on what the finished component must do.
Component Requirement | Suggested Alloy Direction | Reason |
|---|---|---|
General metal components | Balanced performance, dimensional stability, and broad use in common zinc components. | |
Higher strength hardware | Better strength and hardness for small hardware, handles, locks, and structural zinc parts. | |
Thin wall decorative parts | Good flowability and surface performance for thin-wall or detail-sensitive parts. | |
Wear-related components | Useful for selected parts where strength and wear resistance are more important. | |
Heavy-duty small parts | Can be evaluated for higher strength and wear-related applications based on actual working conditions. |
For precision zinc die cast components, alloy selection should be connected with tooling, post-machining, finishing, functional testing, and packaging. A decorative component may require different planning from a moving part or a high-strength hardware component.
How Tooling Design Affects Finished Zinc Die Cast Components
Tooling design has a direct impact on finished zinc die cast components. The mold controls parting lines, gate marks, ejector marks, air escape, filling stability, cavity consistency, dimensional repeatability, and visible surface quality.
For components that will be painted, plated, polished, assembled, or delivered as finished parts, tooling for zinc die cast components must be planned with final use in mind.
Tooling Factor | Component Impact | Planning Focus |
|---|---|---|
Parting line | Affects appearance, trimming, edge quality, and assembly surfaces. | Keep parting lines away from visible faces and functional mating areas where possible. |
Gate location | Can affect surface quality, filling balance, and post-treatment results. | Place gates in non-critical areas and consider removal after casting. |
Ejector mark | May become visible after polishing, plating, painting, or decorative coating. | Define acceptable ejector locations before tooling starts. |
Venting | Affects porosity, short fill, cold shut, and surface defects. | Improve air escape and filling stability for small complex features. |
Multi-cavity mold | Can increase output but may create cavity-to-cavity variation. | Control dimensions, visual quality, and inspection records by cavity. |
Mold maintenance | Affects flash, burrs, tool wear, dimensional drift, and repeat quality. | Use maintenance records and production monitoring for long-term repeat orders. |
Tooling should not be treated as a separate technical step. For finished zinc die cast components, tooling decisions affect surface finishing, CNC machining, functional testing, packaging, and long-term quality consistency.
Visible Surface Control for Zinc Die Cast Components
Visible surface control is one of the most important differences between ordinary zinc casting blanks and finished zinc die cast components. A visible surface is any area that the end user can see or touch after the component is assembled into the final product.
These surfaces should be defined on the drawing, sample, or inspection standard before tooling begins. If cosmetic faces are not marked early, parting lines, ejector marks, gate marks, polishing direction, plating defects, color variation, or scratches may appear in areas that are important to the final product.
Visible Surface Issue | Cause | Prevention |
|---|---|---|
Ejector mark on front face | Tooling layout did not protect the cosmetic surface. | Mark cosmetic faces before tooling and confirm ejector pin positions. |
Plating defect | Base casting surface defects or insufficient polishing control. | Improve casting surface quality, polishing control, and pre-treatment inspection. |
Color difference | Batch finishing variation or unclear visual standard. | Use approved sample standard and compare future batches against a golden sample. |
Scratches after delivery | Packaging did not separate or protect finished surfaces. | Use protective packaging, separation layers, or individual wrapping for appearance parts. |
Coating buildup | Finish thickness was not considered during design and assembly planning. | Review assembly clearance, masking, and coating thickness before production. |
For decorative zinc die cast components, visual standards should be agreed before mass production. A golden sample can help control color, surface texture, gloss, polishing level, coating appearance, and acceptable cosmetic limits during repeat production.
Post-Machining for Finished Zinc Die Cast Components
Finished zinc die cast components often need post-machining for zinc die cast components after casting. The purpose is not to machine every surface, but to control specific functional areas that affect assembly, movement, sealing, fastening, or product performance.
Post-machining planning should consider machining sequence, surface finishing sequence, burr removal, inspection, and final assembly testing. Some features should be machined before coating, while others may require protection or inspection after finishing.
Finished Component Feature | Post-Machining Purpose | Inspection Method |
|---|---|---|
Threaded hole | Improve fastening strength and thread reliability. | Thread gauge inspection and torque test if required. |
Hinge hole | Control movement, pin fit, and smooth rotation. | Pin fit test, coaxiality check, and trial assembly. |
Locating face | Ensure stable assembly position. | Fixture inspection or CMM inspection. |
Sealing face | Improve contact reliability and sealing performance. | Flatness check, surface inspection, and functional validation if needed. |
Press-fit area | Control interference, retention force, and assembly repeatability. | Dimension inspection, fit test, and sampling verification. |
Integrated CNC machining for zinc die cast components helps keep casting datums, machining fixtures, finishing thickness, and final assembly requirements aligned. This is especially useful when the buyer needs machined zinc die cast components ready for product assembly.
Surface Finishing Options for Zinc Die Cast Components
Surface finishing for zinc die cast components affects appearance, corrosion protection, wear resistance, assembly clearance, touch feel, and final packaging. If the component is delivered as a finished part, finishing should be planned as part of the complete production workflow.
Common options include painting, powder coating, decorative coating, wear-resistant coating, polishing, tumbling, and sand blasting. The best process depends on product appearance, working environment, coating thickness tolerance, and handling requirements.
Finish Option | Best For | Buyer Planning Point |
|---|---|---|
Colored product shells, covers, and consumer product components. | Confirm color, gloss, masking, adhesion, and surface preparation. | |
Durable protective surfaces and coated zinc die cast components. | Review coating thickness, edge coverage, and assembly clearance. | |
Consumer-facing components and premium visible parts. | Control appearance consistency, base surface quality, and handling protection. | |
Moving, handled, or contact components. | Evaluate durability, friction, coating adhesion, and service environment. | |
Polishing | Premium visible surfaces and decorative hardware. | Base casting defects must be controlled before polishing. |
Small component deburring and edge smoothing. | Control edge consistency and avoid damaging delicate features. | |
Uniform matte texture and surface preparation. | Review surface roughness, appearance, and downstream coating compatibility. |
For finished zinc die cast components, surface finishing for zinc die cast components should be considered before tooling and machining plans are finalized, especially when coating thickness can affect holes, threads, clips, or mating surfaces.
Functional Testing for Zinc Die Cast Components
Functional testing helps confirm that zinc die cast components can be used in the final product, not only that they look acceptable after production. Finished components may need to pass trial assembly, thread checks, hinge movement tests, coating checks, fit tests, torque tests, visual standard checks, and batch sampling inspections.
The testing plan should match the component’s actual use. A decorative cap may need visual inspection and packaging checks, while a hinge part may need movement testing. A threaded hardware component may need thread gauge inspection and torque validation.
Test Type | Used For | Purpose |
|---|---|---|
Trial assembly | Assembly-ready zinc die cast components. | Confirm fit, interference, clearance, and product assembly reliability. |
Thread gauge test | Threaded holes and screw fastening features. | Confirm connection reliability and thread consistency. |
Movement test | Hinges, levers, rotating parts, and moving components. | Confirm smooth movement, clearance, looseness, and binding risk. |
Coating check | Painted, powder-coated, or decorative components. | Confirm thickness, adhesion, coverage, and appearance consistency. |
Visual standard check | Visible zinc die cast components and cosmetic parts. | Control surface quality, color, gloss, scratches, dents, and finishing defects. |
Batch sampling test | Repeat production components. | Confirm production consistency after sample approval. |
Functional testing should be defined before mass production. This helps suppliers build the right inspection fixtures, sampling plans, test standards, and acceptance criteria for repeat production.
Packaging and Delivery for Finished Zinc Die Cast Components
Packaging is part of quality control for finished zinc die cast components. If a component has been machined, painted, coated, polished, plated, or inspected, poor packaging can still create scratches, dents, thread damage, coating wear, deformation, or rejected shipments.
Finished components should be packed according to surface sensitivity, precision features, quantity, logistics method, and customer assembly needs. Appearance parts may need individual protection, while precision features may need hole protection or separation to prevent collision.
Packaging Need | Risk If Ignored | Recommended Control |
|---|---|---|
Visible surface protection | Scratches, dents, coating marks, or cosmetic rejection. | Use separation layers, sleeves, individual wrapping, or custom trays. |
Plated or coated component protection | Surface rubbing, color damage, coating chips, or corrosion risk. | Use soft separators, moisture control, and handling instructions. |
Thread and precision hole protection | Thread damage, burr impact, or assembly failure. | Protect critical features and avoid metal-to-metal collision. |
Batch identification | Traceability difficulty after delivery. | Use labels, lot numbers, inspection records, and packing lists. |
Assembly-ready delivery | Buyer needs extra sorting, cleaning, or inspection before use. | Pack components according to assembly sequence, cleanliness, and handling needs. |
For ready-to-use zinc die cast components, packaging should be discussed before shipment, not after production is complete. Good packaging protects both the surface value and the functional reliability of finished parts.
How to Choose a Supplier for Finished Zinc Die Cast Components
If buyers need finished zinc die cast components instead of raw castings, the supplier should be able to manage the complete production chain. This includes engineering review, zinc alloy selection, tooling control, die casting, CNC post-machining, surface finishing, functional testing, assembly support, packaging, and mass production.
A one-stop zinc die cast component supplier can reduce project risk because the same supplier can coordinate casting, machining, finishing, testing, packaging, and repeat production under one workflow.
Supplier Ability | Why It Matters | Buyer Benefit |
|---|---|---|
Engineering review | Determines whether the drawing is suitable for finished die cast component production. | Reduces tooling changes, casting defects, and late-stage assembly problems. |
Zinc alloy selection | Matches component strength, surface finish, weight feel, durability, and working environment. | Improves material suitability instead of using one default zinc alloy. |
Tooling control | Controls visible surfaces, defect risk, dimensions, and batch stability. | Improves sample approval and long-term repeat production quality. |
CNC post-machining | Controls threaded holes, locating faces, hinge holes, sealing faces, and press-fit areas. | Improves functional reliability and assembly consistency. |
Surface finishing | Controls appearance, coating thickness, corrosion protection, and product value. | Supports finished zinc die cast components ready for final product use. |
Functional testing | Verifies fit, movement, fastening, coating, and visual quality. | Reduces buyer-side incoming inspection and assembly risk. |
Packaging support | Protects finished surfaces and functional features during delivery. | Reduces scratches, dents, coating damage, and transport-related rejection. |
Mass production support | Maintains quality consistency during repeat orders. | Supports mass production zinc die cast components and long-term procurement. |
Buyers should choose a supplier that can deliver finished zinc die cast components as controlled product parts, not only unfinished zinc castings. This is especially important when the project involves visible surfaces, CNC machining, surface finishing, functional testing, assembly, or protective packaging.
Case References for Finished Zinc Die Cast Components
Relevant case references can help buyers evaluate whether a supplier has experience with finished zinc die cast components, decorative zinc parts, painted shells, and product-ready metal components.
Case Reference | Related Component Type | Why It Matters |
|---|---|---|
Decorative zinc die cast components with coating requirements. | Shows how casting, decorative coating, visible surface control, and finished appearance connect. | |
Painted zinc die cast product shell. | Useful for buyers evaluating painting, cosmetic control, and finished product surfaces. | |
Custom zinc die cast product components. | Relevant for decorative products where appearance, handling, and packaging quality matter. |
When reviewing supplier cases, buyers should compare the case with their own component needs. A decorative cap, painted product shell, hardware part, or assembly-ready component may require different tooling, finishing, testing, and packaging controls.
Summary
Zinc die cast components should be sourced as finished product parts when they require visible surface control, post-machining, coating, functional testing, assembly readiness, packaging protection, and repeat production stability. Buyers should not evaluate these projects only as basic casting jobs.
To reduce project risk, buyers should provide complete RFQ information, define cosmetic surfaces, confirm alloy requirements, review tooling strategy, identify post-machined features, plan surface finishing, set functional testing standards, and confirm packaging requirements before mass production.
Planning Area | Key Buyer Question | Recommended Action |
|---|---|---|
RFQ information | Does the supplier have enough data to quote the finished component? | Provide 3D model, 2D drawing, quantity, surface finish, assembly need, environment, and packaging requirement. |
Material | Which zinc alloy fits the component’s final use? | Select Zamak 3, Zamak 5, Zamak 7, ZA-8, or Zamak 2 based on strength, surface, wear, and assembly needs. |
Tooling | Can the mold protect visible and functional areas? | Plan parting lines, gate locations, ejector marks, venting, multi-cavity consistency, and mold maintenance. |
Visible surfaces | Are cosmetic faces clearly defined? | Use drawing marks, approved samples, visual standards, golden samples, and protective packaging. |
Post-machining | Which features need functional precision? | Define threaded holes, hinge holes, locating faces, sealing faces, and press-fit areas. |
Surface finishing | Will finishing affect appearance, protection, or assembly? | Plan painting, powder coating, decorative coating, polishing, tumbling, sand blasting, and coating thickness control. |
Testing and packaging | Can the component be delivered ready for final product assembly? | Use trial assembly, thread tests, movement tests, coating checks, visual inspection, and protective packaging. |
