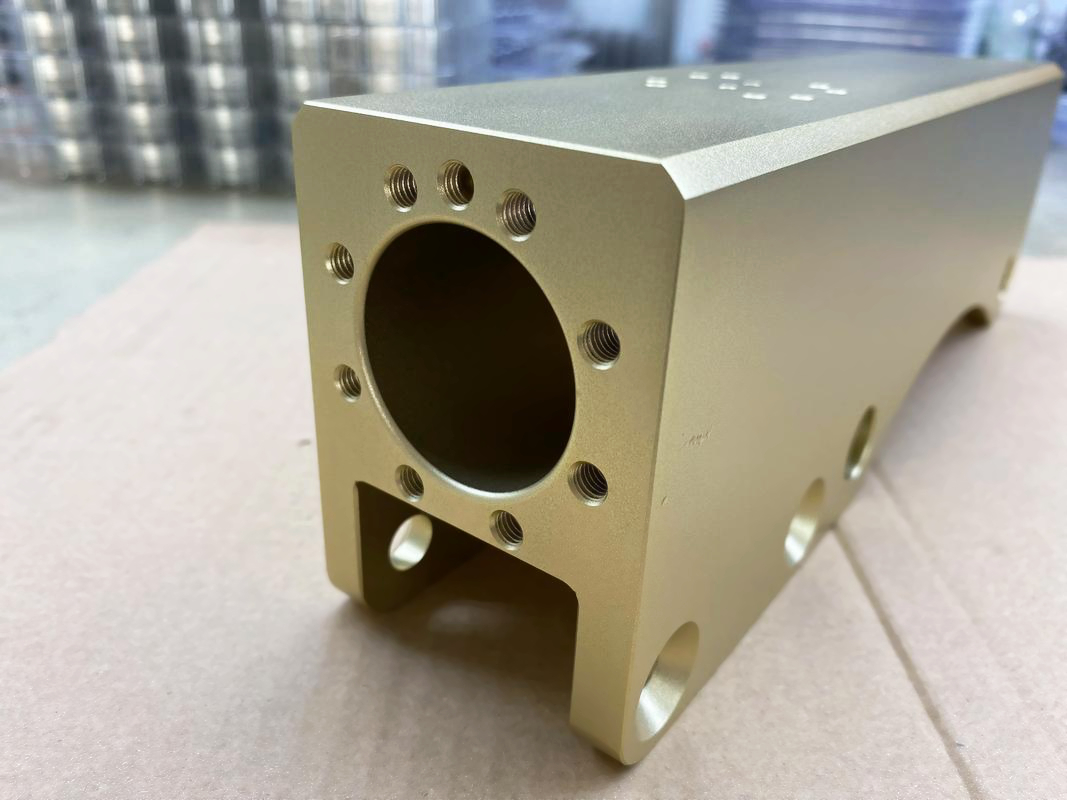

Anodizing Classifications: Exploring Types and Industry Standards

Anodizing classifications tell a supplier how an oxide coating is produced and, in some specifications, whether it is dyed. They do not by themselves define every requirement for thickness, color, sealing, wear, corrosion, dimensions or documentation. A usable drawing callout names the governing specification and revision, Type and Class where applicable, alloy, coating zones, finish condition, measurable acceptance criteria and any approved processor requirement.

The familiar Type I, Type II and Type III labels are most often associated with the US military anodic-coating specification for aluminum. Other systems, including ASTM, ISO, AMS and customer specifications, organize requirements differently. Buyers should not combine a Type from one document with a thickness or test taken from another without resolving conflicts. The controlled purchase order and drawing must establish which document governs.

Separate the classification layers

This distinction matters commercially. A quotation that says only "black anodize" leaves the supplier to infer the process, coating thickness, substrate preparation, color tolerance, masking, sealing and inspection. Two quotes may look comparable while covering different finished parts.

What the process changes

Anodizing electrochemically converts the aluminum surface into aluminum oxide. The coating is integral with the substrate rather than a separately deposited metal layer. Part of the oxide develops relative to the original surface, so the finished size changes. The amount and distribution depend on alloy, coating requirement, process route, geometry and local current density; a single fixed growth fraction should not be used as a drawing rule without processor data.

The oxide is initially porous. Depending on the specification and function, it may be dyed and sealed, left unsealed, or treated by another approved route. Sealing can improve selected corrosion or stain behavior but can also affect abrasion response and dimensions. The drawing must identify whether sealing is required, prohibited or governed by a specific process document.

Anodizing does not hide substrate defects. Machining marks, die-cast flow patterns, porosity, alloy segregation, welds and blended repairs can become more visible after etching and anodizing. Review substrate and preparation with the anodizing processor before freezing a cosmetic standard.

Type I and related thin-film routes

In MIL-PRF-8625 terminology, Type I identifies chromic acid anodizing. The same specification also includes related designations for alternative or thin-film routes; their exact definitions and permitted use must be read from the contract revision. Type I is sometimes selected where a qualified aerospace or defense design already requires that process, where coating behavior on fatigue-sensitive geometry has been evaluated, or where the coating must support a specified paint system.

Chromic acid processing involves hexavalent chromium. That creates worker-exposure, bath-management, waste-treatment and regulatory obligations. These obligations do not make every Type I application technically invalid, but they make casual substitution or casual specification inappropriate. The design authority must decide whether the legacy requirement still applies and whether an approved alternative is allowed.

Do not infer coating thickness, corrosion performance or paint adhesion from the Type name alone. Apply the values and tests in the governing specification, including any purchaser-selected options. If a drawing cites an obsolete document, procurement should obtain an engineering disposition rather than silently replacing it with a newer process.

Type II sulfuric acid anodizing

Type II conventionally refers to sulfuric acid anodizing under MIL-PRF-8625. It is widely used for functional corrosion protection, a controlled aluminum appearance, dyeing and preparation for selected service environments. It is often the first candidate for decorative wrought aluminum because the porous oxide accepts dye before sealing. The result still depends strongly on alloy, temper, surface preparation, rack contact and lot-to-lot substrate condition.

Class 1 and Class 2 should not be mistaken for quality grades. Within the MIL terminology, Class 1 is non-dyed and Class 2 is dyed. Class 1 may still show natural alloy-dependent color. Class 2 still needs an exact color requirement, approved sample or instrumental range where color matters. "Black" alone does not define hue, gloss, uniformity, fade performance or acceptable rack marks.

Type II is not automatically the best choice for every die casting. High-silicon or copper-bearing casting alloys can produce dark, gray, mottled or nonuniform surfaces. A functional oxide may be acceptable while the cosmetic result fails. For cast aluminum, read the substrate-specific guidance in anodizing aluminum die-casting components and run trials on the production alloy and process.

Type III hard anodic coating

Type III identifies a hard anodic coating in MIL terminology. It is selected for wear, sliding, electrical insulation or a controlled hard surface when the complete design supports those functions. Type III is not merely "Type II left in the tank longer." The process window, bath temperature, current strategy, alloy response and thickness target are managed for a different coating outcome.

Hardcoat selection should begin with the wear system: mating material, contact pressure, motion, lubricant, contamination, edge loading and permitted friction. Coating microhardness alone does not predict part life. A brittle or rough surface at a highly loaded edge can perform poorly even when a coupon hardness result is high. Specify a relevant abrasion, sliding or component test when wear drives the decision.

Thicker oxide makes dimensional planning more important. External dimensions can grow, internal openings can close, threads can lose allowance and sharp edges can receive a different local coating condition. Masking may protect a fit or electrical contact, but the mask boundary becomes a functional transition. The design and process team should use the Type III thickness and tolerance planning guide before machining release.

Sealed and unsealed hardcoat may perform differently for corrosion, abrasion, staining and dielectric service. Color can range with alloy and coating condition; a dark appearance is not proof of coating thickness or hardness. If dyed hardcoat is proposed, confirm that the governing specification, required thickness and performance allow the dye and seal route.

Do not force other processes into the Type I-II-III table

Boric-sulfuric and other non-chromate anodizing routes may be controlled by aerospace, customer or processor specifications. They should be called out by their actual governing document, not renamed informally as Type I unless that document says so. Thin sulfuric variants likewise need their proper designation under the selected standard.

Plasma electrolytic oxidation, also called micro-arc oxidation in some contexts, uses electrical discharge behavior to create a ceramic-like surface on suitable light alloys. It is a distinct process family with its own substrate, roughness, thickness, sealing and test considerations. It is not automatically a Type IV extension of the MIL Type sequence. Compare it through the separate arc anodizing service scope and a project-specific specification.

Chemical conversion coating, painting, powder coating and plating are also different finish families. If color uniformity on a silicon-rich die casting matters more than an integral oxide, an organic coating may be a better production decision. The aluminum surface-finish comparison helps buyers evaluate those alternatives without treating every finish as anodizing.

How the main standards fit together

MIL-PRF-8625

MIL-PRF-8625 is commonly cited for anodic coatings on aluminum and aluminum alloys. It defines Types and Classes and includes technical, test and quality provisions. A purchase order should identify the required revision and all contract-selected details. Merely writing "MIL spec anodize" does not identify a complete requirement.

AMS process specifications

AMS documents such as AMS 2470, AMS 2471 and AMS 2472 are commonly associated with particular anodizing process families. They are not interchangeable labels for MIL Types. Read the selected AMS revision for material restrictions, processing, coating requirements and acceptance. An aerospace customer may also require a processor approval or accreditation outside the text of the process specification.

ASTM and ISO documents

ASTM B580 and ISO 7599 provide frameworks for anodic oxide coatings, with scopes and classification approaches that differ from the MIL system. ASTM and ISO test methods may also be referenced for one measured property. A test-method citation does not define the whole coating. State which material specification governs and which test method verifies each acceptance criterion.

Always check the current controlled documents. Requirements can be revised, canceled, superseded or supplemented by a drawing. When requirements conflict, the contract should establish precedence and the design authority should resolve the conflict before processing.

Control conflicts and deviations

A common conflict is a drawing that names one Type but adds a thickness, seal or color associated with another internal company standard. Another is a purchase order that says the latest revision while an approved drawing locks an earlier revision. The processor should not choose the convenient interpretation. List each conflict, obtain a written disposition from the authorized design function, and attach it to the manufacturing traveler.

Deviations need the same discipline. If alloy chemistry, part geometry or coating-line limits prevent one requirement, the supplier should state the affected feature, proposed alternative, technical evidence and expiry or lot limit of the concession. A successful sample made under a temporary deviation does not rewrite the drawing for repeat orders.

Alloy and product form can override a preferred Type

Wrought sheet, extrusion, machined billet and die-cast aluminum do not necessarily produce the same anodized appearance or coating behavior. Alloying elements and intermetallic phases alter dissolution and oxide formation. Heat treatment, grain flow, weld metal, local machining and casting skin can create visible boundaries after etching.

For die castings such as ADC12/A383 or A380, silicon-rich phases and casting variation make bright, uniform dyed color difficult. Porosity can retain process solution and later cause staining or bleed-out. Machining a cosmetic face may expose a different microstructure rather than guarantee uniform color. A trial should use the production alloy, die condition, release system, machining, deburr and cleaning route.

Ask whether the requirement is functional, cosmetic or both. A die casting may pass coating-thickness and corrosion requirements but fail a visual master. Conversely, an attractive sample may not meet wear or sealing requirements. Put each acceptance criterion on the correct surface and manufacturing state.

Build a complete drawing callout

A coating note should identify the governing specification and revision, Type and Class if that system uses them, nominal or required thickness where applicable, seal, color, pretreatment or texture, coating and masking zones, rack-contact restrictions, test requirements and required certificate. Define whether dimensions apply before or after anodizing. Identify threads, bearing fits, sealing lands, electrical contacts and bonded surfaces.

Use a color standard that can be reproduced: an approved physical range, controlled instrumental coordinates and measurement conditions, or both. State whether minor alloy-related variation is acceptable. Gloss and texture need their own limits. Color comparison should occur on the specified alloy and surface preparation under controlled lighting.

Do not call every dimension tight. Select the fits affected by oxide growth and assign pre-finish machining limits that lead to an acceptable final condition. Where masking is used, define the boundary tolerance and whether edge buildup is acceptable. Gauges should represent the finished assembly requirement.

Inspection must verify the claim being purchased

Thickness methods have geometry and substrate limitations. Eddy-current instruments need calibration and sufficient area; cross-sections are destructive; weight-based methods answer a different question. Agree method, location, calibration reference and sampling. A reading on an easy flat face may not represent a recess or thread.

For corrosion protection, specify the test, specimen state, sealing condition, exposure, evaluation and allowable defects. Accelerated corrosion hours are not a direct calendar-life promise. For wear, select a method related to the contact mechanism and state load, wheel or counterface, cycles and endpoint. For seal quality, use the method required by the governing coating specification.

Visual acceptance needs an agreed viewing distance, lighting, orientation and defect catalog. Measure color only when the method, instrument geometry and limits are defined. Keep rack marks, burns, bare contact points, staining, shade variation and handling damage as separate categories rather than rejecting under "bad anodize."

Standards compliance is project-specific

A supplier may have process capability relevant to a standard without being approved for every customer or aerospace program. Before award, confirm the exact facility, process line, specification revision, alloy and Type scope; required accreditation; customer-approved source status; internal versus external testing; and certificate package. If processing is subcontracted, identify the actual processor and flow down the drawing requirements.

First article approval does not authorize uncontrolled changes. Define notification and requalification triggers for alloy source, casting process, pretreatment, bath line, seal, dye, masking, rack method and test laboratory. Traceability should connect finished parts to substrate lot and anodizing batch.

Cost follows these choices. Masking labor, rack density, color sorting, destructive testing, approved-source restrictions and rejected finished parts can matter more than tank time. For quotation planning, use the aluminum anodizing cost guide and require each bidder to identify the same scope.

Where the choice is specifically between decorative sulfuric anodizing and hardcoat, the Type II versus Type III functional selection guide gives a more focused decision path. It should supplement, not override, the controlling drawing.

RFQ inputs and selection sequence

• Controlled drawing and CAD, aluminum alloy/temper and product form, including die-casting designation where relevant.

• Governing coating specification, revision, Type/Class and purchaser-selected options.

• Functional purpose: corrosion, wear, insulation, paint base, color or a ranked combination.

• Coating and masking map, threads, fits, electrical contacts, cosmetic zones and permitted rack marks.

• Finished dimensional limits, coating thickness requirement, seal, color and texture standard.

• Tests, sample locations, frequency, acceptance limits, certificate and traceability requirements.

• Annual volume, lot size, packaging, service environment and approved-processor obligations.

First confirm whether the substrate can produce the required result. Next select a coating family against the dominant function. Then close dimensions, masking, color, sealing and inspection with the processor. Finally, trial production-intent parts and approve both functional data and visual limits before repeat orders. This sequence is more reliable than choosing Type I, II or III from a generic application list.

Final answer

Type I, Type II and Type III are useful classification labels only inside their governing specification. Class identifies dye status in the MIL system, not a performance ranking. ASTM, ISO and AMS documents may define or control anodizing differently, while plasma electrolytic oxidation belongs to a separate process family.

For buyers, the right classification is the one that can be produced on the specified alloy, fits the finished dimensions, passes the application's corrosion or wear test, meets the appearance standard and comes from an approved process route. Put those facts in the drawing and purchase order. The standard name then becomes a shared technical language rather than a substitute for engineering decisions.
